TDA8171

Features: .POWER AMPLIFIER .FLYBACK GENERATOR .THERMAL PROTECTION .OUTPUT CURRENT UP TO 3.0APP .FLYBACK VOLTAGE UP TO 70V (on Pin 5) ·INTERNAL REFERENCE VOLTAGEPinoutSpecifications Symbol Parameter Value Unit VS Supply voltage (Pin 2) (see Note 1) 40 V V6 Flyback Peak Vol...

product image

TDA8171 Picture
See larger image
SeekIC No. : 004516681 Detail

TDA8171: Features: .POWER AMPLIFIER .FLYBACK GENERATOR .THERMAL PROTECTION .OUTPUT CURRENT UP TO 3.0APP .FLYBACK VOLTAGE UP TO 70V (on Pin 5) ·INTERNAL REFERENCE VOLTAGEPinoutSpecifications Symbol Para...

TDA8171 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8171
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

.POWER AMPLIFIER
.FLYBACK GENERATOR
.THERMAL PROTECTION
.OUTPUT CURRENT UP TO 3.0APP
.FLYBACK VOLTAGE UP TO 70V (on Pin 5)
·INTERNAL REFERENCE VOLTAGE


Pinout

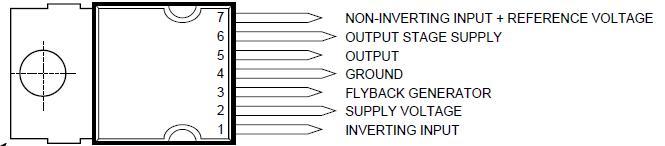

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VS Supply voltage (Pin 2) (see Note 1)
40
V
V6 Flyback Peak Voltage (Pin 6) (see Note 1)
75
V
V1,V7 Amplifier Input Voltage (Pins 1-7) (see Note 1)
- 0.3, + VS
V
IO Maximum Output Peak Current (see Notes 2 and 3)
2.5
A
I3 Maximum Sink Current (first part of flyback) (t < 1ms)
2.5
A
I3 Maximum Source Current (t < 1ms)
2.5
A
VESD Electrostatic Handling for all pins (see Note 4)
2000
V
Toper Operating Ambient Temperature
- 20, + 75
Tstg Storage Temperature
- 40, + 150
Tj Junction Temperature
+150

Notes : 1. Versus Pin 4.
            2. The output current can reach 4A peak for t 10s (up to 120Hz).
            3. Provided SOAR is respected (see Figures 1 and 2).
            4. Equivalent to discharging a 100pF capacitor through a 1.5kW series resistor.


Description

Designed for monitors and high performance TVs,the TDA8171 vertical deflection booster delivers flyback voltages up to 70V.

The TDA8171 operates with supplies up to 35V and provides up to 3APP output current to drive the yoke.

The TDA8171 is offered in HEPTAWATT package.
