Product Details

Description

Features:

The functions incorporated are :
.POWERAMPLIFIER
.FLYBACKGENERATOR
.REFERENCE VOLTAGE
· THERMAL PROTECTION

Pinout

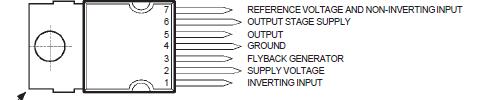

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Supply Voltage (pin 2)	35	V
V₅, V₆	Flyback Peak Voltage	60	V
V₃	Voltage at Pin 3	+V_S
V₁,V₇	Amplifier Input Voltage	+ Vs, 0.5	V
I_O	Output Peak Current (non repetitive, t = 2 msec)	2.5	A
I_O	Output Peak Current at f =50 or 60 Hz,, t 10 msec	3	A
I_O	Output Peak Current at f =50 or 60 Hz, t > 10 msec	2	A
I₃	Pin 3 DC Current at V₅< V₂	100	mA
I₃	Pin 3 Peak to Peak Flyback Current at f =50 or 60 Hz,t_fly 1.5 msec	3	A
P_tot	Total Power Dissipation at T_case = 90 °C	20	W
T_stg, T_j	Storage and Junction Temperature	40,+150

Description

The TDA8170 is a monolithic integrated circuit in HEPTAWATT^TM package. It is a high efficiency power booster for direct driving of verticalwindings of TV yokes. It is intended for use in Colour and B &Wtelevision receivers as well as in monitorsand displays.
