Product Details

Description



Features:

. CONTROLLED DRIVING OF THE POWER
  TRANSISTOR DURING TURN ON AND OFF PHASE FOR MINIMUM POWER DISSIPATION  AND HIGH RELIABILITY
·  HIGH SOURCE AND SINK CURRENT CAPA BILITY
·  DISCHARGE CURRENT DERIVED FROM PEAK CHARGE CURRENT
.  CONTROLLED DISCHARGE TIMING
·  DISABLE FUNCTION FOR SUPPLY UNDER
   VOLTAGE AND NONSYNCHRONOUS OP ERATION
·  PROTECTION FUNCTION WITH HYSTERE SIS FOR OVERTEMPERATURE
.  OUTPUT DIODE CLAMPING
·  LIMITING OF THE COLLECTOR PEAK CURRENT OF THE DEFLECTION POWER TRAN.
   SISTOR DURING TURN ON PERIOD
·  SPECIAL REMOTE FUNCTION WITH DELAY
   TIME TO SWITCH THE OUTPUT ON


Pinout

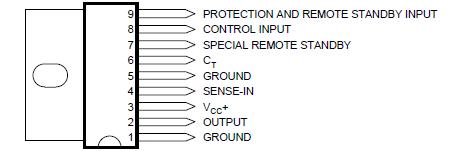

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VCC DC Supply Voltage
18
V
Id Output Current
Internally Limited
Ptot Power Dissipation
Internally Limited
Tstg, Tj Storage and Junction Temperature
40, + 150
Toper Operating Temperature
0, + 70




Description

The TDA8143 is a monolithic integrated circuit designed to drive the horizontal deflection power tran-sistor.

The current source characteristic of this device is adapted to the non-linear current gain behaviour of the power transistor providing a minimum power dissipation. The TDA8143 is internally protected against short circuits and thermal overload.
