TDA8137 Selling Leads, Price trend, TDA8137 DataSheet download, circuit diagram from SeekIC.com

Features: .OUTPUT CURRENTS UP TO 1A ·FIXED PRECISION OUTPUT VOLTAGES 5.1V ± 2% .OUTPUT 1 WITH RESET FACILITY .OUTPUT 2 WITH DISABLE BY TTL INPUT· SHORT CIRCUIT PROTECTION AT BOTH OUTPUTS .THERMAL PROTECTION ·LOW DROP OUTPUT VOLTAGEPinoutSpecifications Symbol Parameter Value Unit VIN...

See larger image

SeekIC No. : 004516673 Detail

TDA8137: Features: .OUTPUT CURRENTS UP TO 1A ·FIXED PRECISION OUTPUT VOLTAGES 5.1V ± 2% .OUTPUT 1 WITH RESET FACILITY .OUTPUT 2 WITH DISABLE BY TTL INPUT· SHORT CIRCUIT PROTECTION AT BOTH OUTPUTS .THERMAL PR...

TDA8137 Data Sheet

Get Latest Price

Part Number:: TDA8137
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

TDA8000 evaluate
Features: · Two protected I/O lines· VCC regulation (5 V ±4%, 100 mA max. with controlled rise and...
TDA8000T evaluate
Features: · Two protected I/O lines· VCC regulation (5 V ±4%, 100 mA max. with controlled rise and...
TDA8001 evaluate
Features: · Protected I/O line· VCC regulation (5 V ±5%, 100 mA max. with controlled rise and fall...

Product Details

Description

Features:

.OUTPUT CURRENTS UP TO 1A
·FIXED PRECISION OUTPUT VOLTAGES 5.1V ± 2%
.OUTPUT 1 WITH RESET FACILITY
.OUTPUT 2 WITH DISABLE BY TTL INPUT
· SHORT CIRCUIT PROTECTION AT BOTH OUTPUTS
.THERMAL PROTECTION
·LOW DROP OUTPUT VOLTAGE

Pinout

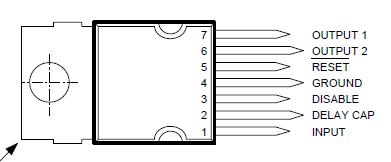

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_IN	DC Input Voltage Pin 1	20	V
V_DIS	Disable Input Voltage	20	V
V_RST	Output Voltage at Pin 6	20	V
I_{O1, 2}	Output Currents	Internally Limited
P_t	Power Dissipation	Internally Limited
T_STG	Storage Temperature	-65 to +150
T_j	Junction Temperature	0 to +150

Description

The TDA8137 is a monolithic dual positive voltage regulator designed to provide fixed precision output voltages of 5.1V at currents up to 1A.

An internal reset circuit generates a reset pulse when the output 1 decreases below the regulated voltage value.

Output 2 can be disabled by TTL input.

Short circuit and thermal protections of the TDA8137 are included.

Customers Who Bought This Item Also Bought

TDA8002CT/C/C1
US $$0.63 - 0.86 / Piece

Supply Ability:10000Week

View details
TDA8002CT/C/C1
US $$1.00 - 1.00 / Piece

Supply Ability:4Day

View details
TDA8004T/C1(p/b)
US $$1.59 - 1.59 / Piece

Supply Ability:10000Week

View details
TDA8007BHL
US $$3.00 - 3.00 / Piece

Supply Ability:1Day

View details
TDA8007BHL
US $$8.00 - 8.00 / Piece

Supply Ability:1Day

View details

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.

TDA8137

product image

floor Price/Ceiling Price

Price Break

Month Sales

Rating

Payment Methods

Recent History

Description

Customers Who Bought This Item Also Bought

Undefined Category(248)

Tapes, Adhesives(300)

Memory Cards, Modules(216)

Filters(263)

Relays(6300)

Audio Products(940)
