Features:

·OUTPUT CURRENTS UP TO 600mA
· FIXED PRECISION OUTPUT 1 VOLTAGE 12V ± 2%
· FIXED PRECISION OUTPUT 2 VOLTAGE 12V ± 2%
·OUTPUT 2 VOLTAGE DISABLED BY A TTL INPUT
·SHORT CIRCUIT PROTECTION AT BOTH OUTPUTS
·THERMAL PROTECTION
·LOWDROP OUT 1.5V AT 400mA
·HIGH SUPPLY VOLTAGEREJECTION

Pinout

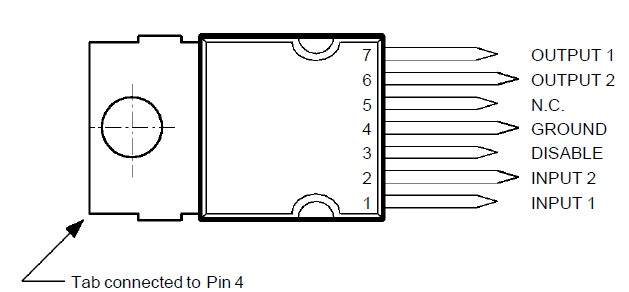

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_{IN1, 2} V_DIS	DC Input Voltages Disable Input Voltage Pin 3	24 24	V V
I_{O1, 2} P_t	Output Currents Power Dissipation	Internally Limited Internally Limited
T_STG T_j	Storage Temperature Junction Temperature	65 to + 150 0 to + 150

Description

The TDA8136 is a monolithic dual positive voltage regulator designedto provide fixed precision output voltages, both 12V at currents up to 600mA.

Output 2 can be disabled by a TTL input. Both output currents are limited by an internal short circuit protection.
