Features:

` High input sensitivity
` Fully balanced two-pin Voltage Controlled Oscillator (VCO)
` Low input impedance (50 )
` Low impedance video baseband output
` Internal voltage stabilizer
` Keyed AFC or peak-to-peak AFC
` Carrier detector
` AGC output
` Suitable for High Definition TV (HDTV).

Application

· Direct Broadcast Satellite (DBS) receivers.

Pinout

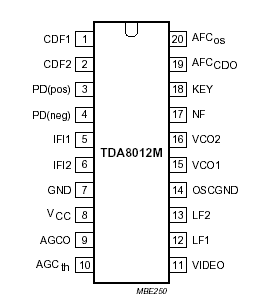

Connection Diagram

Specifications

SYMBOL	PARAMETER	MIN.	MAX.	UNIT
V_CC	supply voltage	-0.3	+6.0	V
V_i(max)	maximum input voltage on all pins	-0.3	V_CC	V
I_source(max)	maximum output source current	-	10	mA
t_sc	maximum short-circuit time on all outputs	-	10	S
Z_L	AC load impedance at video output	600	-
T_stg	storage temperature	-55	+150
T_j	junction temperature	-	+150
T_amb	Operating ambient temperature	-10	+80

Description

The TDA8012M is a sensitive PLL FM demodulator which is used for the second IF in satellite receivers. It provides utomatic Gain Control (AGC) and Automatic Frequency Control (AFC) outputs that can be used to optimize the evel and frequency of the input signal. During the searching procedure, the AFC output provides a signal hich is used for carrier detection.
