Features: * 80C52 core with 16 kbyte ROM and 256 byte RAM
* Extra 1 kbyte RAM outside the core for data storage
* Control and communication through a standard RS232 full duplex interface or a parallel interface
* Specific ISO 7816 UART with parallel access on I/O for automatic convention processing, variable baud rate through frequency or division ratio programming, error management at character level for T = 0, extra guard time register
* VCC generation(5 V ±5%or3 V ±5%,65 mA maximum with controlled rise and fall times)
* Card clock generation (up to 10 MHz) with two times synchronous frequency doubling
* CardclockSTOPHIGH,clockSTOPLOWor1.25 MHz (from internal oscillator) for card power-down mode
* CLKOUToutputforclockingexternaldeviceswitheither fxtal, 1/2fxtal or 1/4fxtal
* Automaticactivationanddeactivationsequencethrough an independent sequencer
* SupportstheasynchronousprotocolsT = 0andT = 1in accordance with ISO 7816, Europay, Mastercard and Visa (EMV)
* Supports synchronous cards
* Short circuit current limiting
* Special circuitry for killing spikes during power-on or off
* Supply supervisor for power-on/off reset
* Step-up converter (supply voltage from 4.2 to 6 V)
* Power-down and sleep mode for low power consumption
* Enhanced ESD protection on card side (6 kV minimum)
* Software library for easy integration within the application.

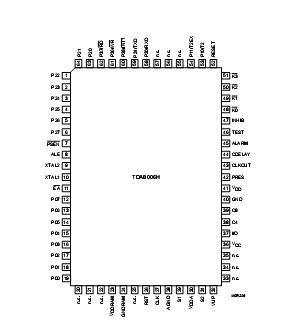

Application* Smart card readers for multiprotocol applications(EMV banking, digital pay TV, access control, etc.).Pinout
DescriptionIt is assumed that the reader of this data sheet is familiar with ISO 7816.
TheTDA8006iscontrolledeitherthroughastandardserial interface or a parallel bus, it takes care of all ISO 7816,
EMV and GSM11.11 requirements. It gives the card and the set a very high level of security due to its special hardware against ESD, short circuit, power failure, etc.
Its integrated step-up converter allows operation within a supply voltage range of 4.2 to 6 V.
A specialversionoftheTDA8006isavailablewhichhasits internal connections to the controller accessible through external pins. This allows easy development and evaluationwhenusedwitha80CL580microcontrollerora development tool. An emulation board is available.
A software library has been developed, taking care of all actions required for T = 0, T = 1 and synchronous protocols. This library may be either linked with the application software before masking, or masked in the internal ROM (see "Application Note AN98106").
TDA8006 Data Sheet
