T6C25

Features: `Display duty application : to 1 / 480`LCD drive signal : 160`Data transfer : Column : 4 / 8-bit bidirectional Row : Single / Dual bidirectional`Operating frequency : 8 MHz`LCD drive voltage : 14 to 42 V`Power supply voltage : 2.7 to 5.5 V`Operating temperature : −20 to 75°C`LCD dr...

product image

T6C25 Picture
See larger image
SeekIC No. : 004511409 Detail

T6C25: Features: `Display duty application : to 1 / 480`LCD drive signal : 160`Data transfer : Column : 4 / 8-bit bidirectional Row : Single / Dual bidirectional`Operating frequency : 8 MHz`LCD drive volta...

T6C25 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T6C25
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Display duty application : to 1 / 480
`LCD drive signal : 160
`Data transfer : Column : 4 / 8-bit bidirectional Row : Single / Dual bidirectional
`Operating frequency : 8 MHz
`LCD drive voltage : 14 to 42 V
`Power supply voltage : 2.7 to 5.5 V
`Operating temperature : −20 to 75°C
`LCD drive output resistance : 1.3 k (max) (20 V, 1 / 13 bias)
`Display-off function : When / DSPOF is L, all LCD drive outputs (O1 to O160) remain at the V5 level.
`Low power consumption : Cascade connection and auto enable transfer functions are available.
`EI / LP input : EI / LP Input enables LSI operation. Connect EIO 1 / 2 from the 1st LSI to L.


Pinout

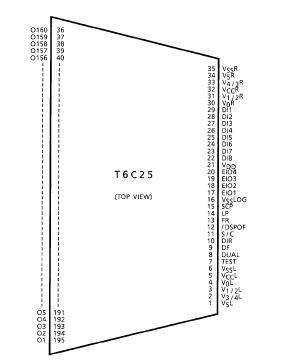

Connection Diagram


Specifications

Item
Symbol
Pin Name
Rating
Unit
Supply Voltage (1)
VDD
VDD
−0.3 to 7.0
V
Supply Voltage (2)
VCC
VCCL / R
−0.3 to 45.0
V
Supply Voltage (3)
V0, V2
V0L / R V2L / R
−0.3 to VCC + 0.3
V
Supply Voltage (4)
V3, V5
V3L / R V5L / R
−0.3 to 7.0
V
Input Voltage
VIN
(* 2)
−0.3 to VDD + 0.3
V
Operating Temperature
Topr
−20 to 75
°C
Storage Temperature
Tstg
−40 to 125
°C
Note 2: SCP, FR, LP, DIR, DF, S / C, EIO1, EIO2, DI1 to 8, / DSPOF, TEST


Description

The T6C25 is a 160-channel-output column and row driver for an STN dot matrix LCD.

The T6C25 features a 42-V LCD drive voltage and an 8-MHz maximum operating frequency. The T6C25 is able to drive LCD panels with a duty ratio of up to 1 / 480.
