Features:

·Dot matrix graphic LCD row driver
·Built-in oscillator (additional external resistor)
·Duty : 1/240
·Display OFF function : /DSPOF = L, all LCD outputs = VSS
·Low power consumption
·Logic power supply : 2.7 to 5.5 V
·LCD power supply : 8.0 V to 30.0 V
·CMOS process
·Package : TCP (Tape Carrier Package)


Pinout

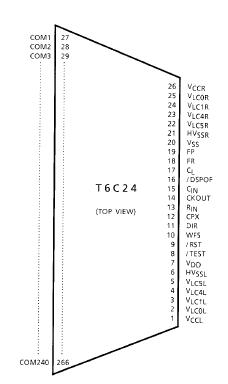

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Supply Voltage (1)
VDD(Note 2)
-0.3 to 7.0
V
Supply Voltage (2)
(Note 1, 2)
−0.3 to 32.0
V
Input Voltage
VIN (Note2,3)
-0.3 to VDD + 0.3
V
Operating Temperature
Topr
-20 to 75
°C
Storage Temperature
Tstg
-55 to 125
°C
Note 1: VCCL, VCCR, VLC0L, VLC0R, VLC1L, VLC1R, VLC4L, VLC4R, VLC5L and VLC5R
Note 2: Referenced to VSS, HVSSL and HVSSR
Note 3: Applies to all data bus and I / O pins.
Note 4: Ensure that the following condition is always maintained.
VCCL / R VLC0L / R VLC1L / R VLC4L / R VLC5L / R HVSSL / R


Description

The T6C24 is a row (common) driver LSI for a dot matrix LCD. The T6C24 generates the timing signals for the display using a built-in oscillator and also controls the T6C23 column (segment) LCD driver.

The T6C24 features a low-impedance 240-output row driver. The T6C24 also includes internal resistors to divide the bias voltage, a power supply op-amp and a contrast control circuit. The T6C24 can be used in conjunction with the T6C23 to construct a low-power LCD system.
