SI9433DY

MOSFET 20V 5.4A 2.5W

product image

SI9433DY Picture
See larger image
SeekIC No. : 00164749 Detail

SI9433DY: MOSFET 20V 5.4A 2.5W

SI9433DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI9433DY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : P-Channel Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 12 V Continuous Drain Current : 5.4 A
Resistance Drain-Source RDS (on) : 45 mOhms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Narrow

Description

Packaging :
Configuration : Single
Mounting Style : SMD/SMT
Transistor Polarity : P-Channel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Package / Case : SOIC-8 Narrow
Gate-Source Breakdown Voltage : +/- 12 V
Resistance Drain-Source RDS (on) : 45 mOhms
Continuous Drain Current : 5.4 A

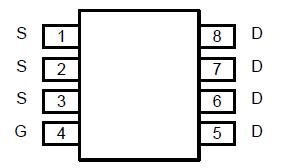

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Unit
Drain-Source Voltage VDS -20 V
Gate-Source Voltage VGS ±12
Continuous Drain Current (TJ = 175°C)a TA = 25°C ID ±5.4 A
TA = 70°C ±4.4
Pulsed Drain Current(10 s Pulse Width) IDM ±20
Continuous Source Current (Diode Conduction)a IS -2.6
Maximum Power DissipationaMOSFET)a, b TA = 25°C PD 2.5 W
TA = 70°C 1.6
Operating Junction and Storage Temperature Range TJ, Tstg 55 to 150 °C
