SI4925BDY

MOSFET 30V 7.1A 2W

product image

SI4925BDY Picture
See larger image
SeekIC No. : 00166560 Detail

SI4925BDY: MOSFET 30V 7.1A 2W

SI4925BDY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI4925BDY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : P-Channel Drain-Source Breakdown Voltage : 30 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 5.3 A
Resistance Drain-Source RDS (on) : 25 mOhms Configuration : Dual
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Narrow

Description

Packaging :
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Drain-Source Breakdown Voltage : 30 V
Transistor Polarity : P-Channel
Maximum Operating Temperature : + 150 C
Configuration : Dual
Continuous Drain Current : 5.3 A
Resistance Drain-Source RDS (on) : 25 mOhms
Package / Case : SOIC-8 Narrow


Features:

·TrenchFET® Power MOSFET
·Advanced High Cell Density Process


Application

· Load Switches
  - Notebook PCs
  - Desktop PCs
  - Game Stations


Pinout

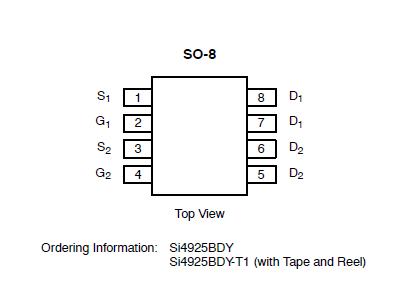

Connection Diagram


Specifications

Parameter
Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS −30 V
Gate-Source Voltage VGS ±20
Continuous Drain Current (TJ = 150)a TA = 25 ID -7.1 -5.3 A
TA = 70 -5.7 -4.3
Pulsed Drain Current IDM -40
continuous Source Current (Diode Conduction)a IS −1.7 −0.9
Maximum Power Dissipationa TA = 25 PD 2.0 1.1 W
TA = 70 1.3 0.7
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150
