STV5346

Features: `COMPLETE TELETEXT DECODER INCLUDING AN 8 PAGE MEMORY ON A SINGLE CHIP`UPWARD SOFTWARE COMPATIBLE WITH PREVIOUS SGS-THOMSON's MULTICHIP SOLUTIONS (SAA5231,SDA5243, STV5345)`SINGLE +5V SUPPLY VOLTAGE`SINGLE 13.875MHz CRYSTAL`REDUCED SET OF EXTERNAL COMPONENTS, NOEXTERNAL ADJUSTMENT`OPTIMI...

product image

STV5346 Picture
See larger image
SeekIC No. : 004509004 Detail

STV5346: Features: `COMPLETE TELETEXT DECODER INCLUDING AN 8 PAGE MEMORY ON A SINGLE CHIP`UPWARD SOFTWARE COMPATIBLE WITH PREVIOUS SGS-THOMSON's MULTICHIP SOLUTIONS (SAA5231,SDA5243, STV5345)`SINGLE +5V SUPP...

STV5346 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV5346
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`COMPLETE TELETEXT DECODER INCLUDING AN 8 PAGE MEMORY ON A SINGLE CHIP
`UPWARD SOFTWARE COMPATIBLE WITH PREVIOUS SGS-THOMSON's MULTICHIP SOLUTIONS (SAA5231,SDA5243, STV5345)
`SINGLE +5V SUPPLY VOLTAGE
`SINGLE 13.875MHz CRYSTAL
`REDUCED SET OF EXTERNAL COMPONENTS, NOEXTERNAL ADJUSTMENT
`OPTIMIZED NUMBER OF DIGITAL SIGNALS REDUCING EMC RADIATION
`HIGH DENSITY CMOS TECHNOLOGY
`DIGITALDATA SLICER AND DISPLAY CLOCK PHASE LOCK LOOP
`28 PIN DIP & SO PACKAGE




Pinout

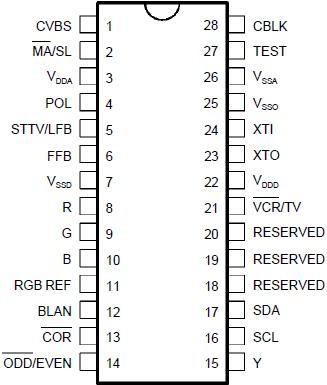

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD
 Positive Supply Voltage on VDDD and VDDA
- 0.3, 6.0
V
VI
 Input Voltage (any input)
- 0.3, VDD + 0.5
V
VO
 Output Voltage (any output)
- 0.3, VDD + 0.5
V
DVDD
 Difference between VDDD, VDDA
0.25
V
Toper
 Operating Ambient Temperature
0, + 70
Tstg
 Storage Temperature
- 40, + 150



Description

The STV5346 decoder is a computer-controlled teletext device including an 8 page internal memory.Data slicing and capturing extracts the teletext information embedded in the composite video signal.Control is accomplished via a two wire serial I2C bus Connection Diagram. InternalROM provides a character set suitable to display text using up to seven national
languages. Different ROM versions will support several national character sets.Hardwareand software features allow selectable master/slave synchronization configurations. The STV5346 also supports facilities for reception and display of current level protocol data
