Features:

· Bandwidth : 6MHz typical
· Supply Voltage : 200V typical
· Rise and Fall Time : 60ns TYPICAL
· CRT Cathode Current Outputs for Parallel or Sequential Cut-off or Drive Adjustment
· Flashover Protection

Application

· A differential amplifier, the gain of which is fixed by external feedback resistors,
· A voltage reference,
· A PMOS transistor providing a copy of the cathode current
· A protection diode against CRT arc discharges

Pinout

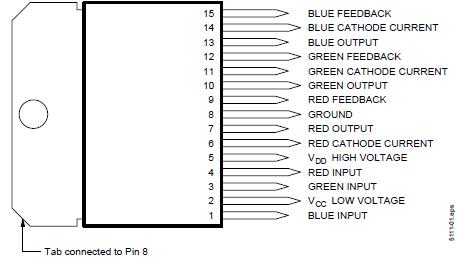

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_DD	Supply High Voltage Pin 5	250	V
V_CC	Supply Low Voltage Pin 2	20	V
I_OD I_OG	Output Current Pins 7 - 10 - 13 to V_DD to Ground	Protected 8	mA
I_FD I_FG	Output Current < 50s duration Pins 9 - 12 - 15 to V_DD to Ground	45 45	mA mA
I_j	Input Current Pins 1 - 3 - 4	60	mA
T_j	Junction Temperature	150
T_oper	Operating Ambient Temperature	0, + 70
T_stg	Storage Temperature	- 20, + 150

Description

The STV5111 includes three video amplifiers desi-gned with a high voltage bipolar/CMOS/ DMOS technology (BCD). STV5111 drives directly the three cathodes and is protected against flashovers. Thanks to its three cathode current outputs, the STV5111 can be used with both parallel and sequential sampling applications
