Features:

`COMPLETE TELETEXT DECODER INCLUDING ON-CHIP 8 PAGES MEMORY, REDUCING EMC RADIATIONS
`UPWARD SOFTWARE AND HARDWARE COMPATIBLE WITH PREVIOUS SGS-THOM SON's DECODER SDA5243
`DIRECT INTERFACE TO AN EXTERNAL STATIC RAM OF 8kBYTES FOR UP TO 16 PAGES APPLICATION
`AUTOMATIC SELECTION OF UP TO SIX NATIONAL LANGUAGES
`FOUR SIMULTANEOUS PAGE REQUESTS
`DISPLAYOF THE 25TH STATUS ROW
`MICROPROCESSOR CONTROL VIA AN I2C BUS (SLAVE ADDRESS 0010001R/W)
`DATA ACQUISITION AVAILABLE FROM LINES 2 TO 22 OR FROM A COMPLETE FIELD
`HIGH QUALITY DISPLAY USING A CHARACTER MATRIXOF 12 x 10 DOTS
`SINGLE + 5V SUPPLYVOLTAGE
`ON-CHIP MASK PROGRAMMABLE ROM CHARACTER GENERATORS
`HCMOS PROCESS


Pinout

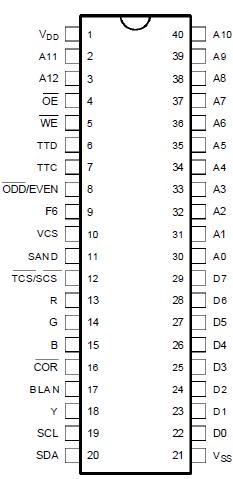

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD
 Power Supply Range
-0.3, +6.0
V
INPUT VOLTAGE RANGE :
VI
 VCS,SDA,SCL,D0-D7
-0.3, VDD + 0.5
V
VI
 TTD,F6,TCS/SCS,TTC
-0.3, +10
V
OUTPUT VOLTAGE RANGE :
VO
 SAND,A0-A12,OE,WE,D0-D7,SDA,ODD/EVEN,R,G,B
-0.3 , VDD
V
VO
 BLAN,COR, Y,TCS/SCS
-0.3 , VDD
V
Tstg
 Storage Temperature Range
-20, +125
TA
 Operating Ambient Temperature Range
-20, +70



Description

The STV5345is a HCMOS integrated circuit which performs all the processing of logical data within a 625 lines system teletext decoder. It is designed to operate in conjunction with one-chip : the SAA5231 integrated chip which extracts Teletext information embedded in a composite video signal. Up to 8 pages of display data can be stored in internal
memory. Using 8Kbytes of external memory leads to a 16 pages application.A complete system also comprises a microprocessor controlling the STV5345 via a 2-wires serial bus. An on-chipROM memory contains the character sets. The STV5345 performs automatic selection of one of up to six natural languages. Data bytes may be decodedin
either 7-Bit plus parity or in full 8-Bit formats. The chip set also supports facilities for reception and display of higher-level protocol data.
