STV5342

Features: `COMPLETE TELETEXT DECODER INCLUDING ON-CHIP 4 PAGES MEMORY, REDUC ING EMC RADIATIONS`UPWARD SOFTWARE AND HARDWARE COMPATIBLE WITH PREVIOUS SGS-THOM.SON's DECODER SDA5243`AUTOMATIC SELECTION OF UP TO SIX NA TIONAL LANGUAGES`4 SIMULTANEOUS PAGE REQUESTS`DISPLAYOF THE 25TH STATUS ROW`MICRO...

product image

STV5342 Picture
See larger image
SeekIC No. : 004509000 Detail

STV5342: Features: `COMPLETE TELETEXT DECODER INCLUDING ON-CHIP 4 PAGES MEMORY, REDUC ING EMC RADIATIONS`UPWARD SOFTWARE AND HARDWARE COMPATIBLE WITH PREVIOUS SGS-THOM.SON's DECODER SDA5243`AUTOMATIC SELECTI...

STV5342 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV5342
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`COMPLETE TELETEXT DECODER INCLUDING ON-CHIP 4 PAGES MEMORY, REDUC ING EMC RADIATIONS
`UPWARD SOFTWARE AND HARDWARE COMPATIBLE WITH PREVIOUS SGS-THOM.SON's DECODER SDA5243
`AUTOMATIC SELECTION OF UP TO SIX NA TIONAL LANGUAGES
`4 SIMULTANEOUS PAGE REQUESTS
`DISPLAYOF THE 25TH STATUS ROW
`MICROPROCESSOR CONTROL VIA AN I2C BUS (SLAVE ADDRESS 0010001R/ W)
`DATA ACQUISITION AVAILABLE FROM LINES 2 TO 22 OR FROM A COMPLETE FIELD
`HIGH QUALITY DISPLAY USING A CHARAC TER MATRIXOF 12 x 10 DOTS
`SINGLE + 5V SUPPLYVOLTAGE
`ON-CHIP MASK PROGRAMMABLE ROM CHARACTER GENERATORS
`HCMOS PROCESS



Pinout

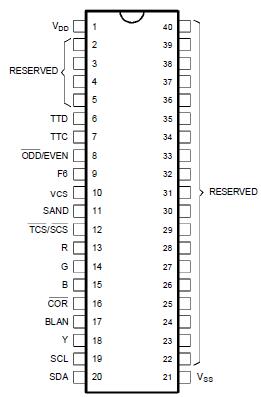

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD
 Power Supply Range
-0.3, +6.0
v
INPUT VOLTAGE RANGE :
VI
 VCS,SDA,SCL,D0-D7
-0.3, VDD + 0.5
V
VI
 TTD,F6,TCS/SCS,TTC
-0.3, +10
V
OUTPUT VOLTAGE RANGE :
VO
 SAND,SDA,ODD/EVEN,R,G,B
-0.3 , VDD
V
VO
 BLAN,COR ,Y,TCS/SCS
-0.3 , VDD
V
Tstg
 Storage Temperature Range
-20, +125
TA
 Operating Ambient Temperature Range
-20, +70



Description

The STV5342is a HCMOS integrated circuit which performs all the processing of logical data within a 625 lines system teletext decoder. It is designed to operate in conjunction with one-chip : the SAA5231 integrated chip which extracts Teletext information embedded in a composite video signal. Up to 4 pages of display data can be stored in internal
memory. A complete system also comprises a microprocessorcontrolling theSTV5342 via a 2-wires serial bus. An on-chipROM memory contains the character sets. The STV5342 performs automatic selection ofone of upto sixnatural languages.Data bytes may be decoded in either 7-Bit plus parity or in full 8-Bit formats. The chip set also supports
facilities for reception and display of higher-level protocol data.
