Features:

Bluetooth® V1.1 specification compliant
SW compatible with STLC2410B-M28R400CT combination
2 layer class 4 PCB compatible
Point-to-point, point-to-multi-point (up to 7 slaves) and scatternet capability
Asynchronous Connection Less (ACL) link support giving data rates up to 721 kbps
Synchronous Connection Oriented (SCO) link
Standard BlueRF bus interface
Clock support
System clock input: 13 MHz external clock
LPO clock input at 3.2 and 32 kHz or via the embedded 32 kHz crystal oscillator cell
ARM7TDMI 32-bit CPU
Memory organization
Integrated 4 Mbit flash
64 KByte on-chip RAM
4 KByte on-chip boot ROM
Hold-acknowledge bus arbitration support
HW support for all packet types
ACL: DM1, 3, 5 and DH1, 3, 5
SCO: HV1, 2, 3 and DV1
Communication interfaces
Serial Synchronous Interface
Two enhanced 16550 UART's with 128 byte fifo depth
12 Mbps USB interface
Fast master I2C bus interface
Multi slot PCM interface
16 programmable GPIO
2 external interrupts and various interrupt possibilities through other interfaces
Ciphering support for up to 128-bit key
Receiver Signal Strenght Indication (RSSI)support for power-controlled links
Separate control for external power amplifier (PA) for class1 power support.
Software support
Low level (up to HCI) stack or embedded stack with profiles
Support of UART and USB HCI transport layers.
Idle and power down modes
Ultra low power in idle mode
Low standby current


Application

Cable replacement
Portable computers, PDA
Modems
Handheld data transfer devices
Cameras
Computer peripherals
Other type of devices that require the wireless communication provided by Bluetooth®


Pinout

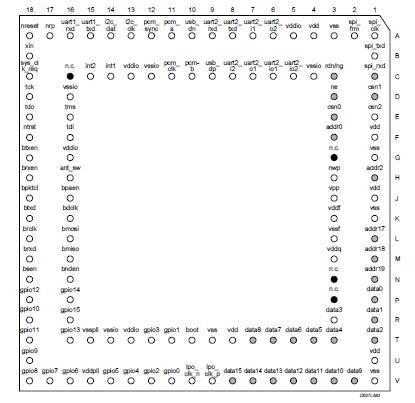

Connection Diagram


Specifications

Symbol Conditions Min Max Unit
VDD Supply voltage baseband core VSS 0.5 2.5 V
VDDF Supply voltage flash VSS 0.5 2.5 V
VPP Fast Program Voltage VSS 0.5 13 V
VDDIO Supply voltage baseband I/O   4 V
VDDQ Supply voltage flash I/O VSS 0.5 2.5 V
VIN Input voltage on any digital pin (excluding FLASH input pins) VSS 0.5 VDDIO + 0.3 V
Tamb Operating ambient temperature -40 +85
Tstg Storage temperature -55 +150
Tlead Lead temperature < 10s   +250



Description

The STLC2415 from STMicroelectronics is a Bluetooth ® baseband controller with integrated 4 Mbit  flash memory. Together with a Bluetooth® Radio this product offers a compact and complete solution for short-range wireless connectivity. It incorporates all the lower layer functions of the Bluetooth® protocol.

The microcontroller STLC2415 allows the support of all data packets of Bluetooth® in addition to voice. The embedded controller can be used to run the Bluetooth ® protocol and application layers if required.The software is located in the integrated flash memory.
