Features:

FULLY MONOLITHIC FIXED FREQUENCY SMPS
THREE LOW SIDE DRIVERS FOR STOP TAIL AND TURN LED LAMPS ARRAYS DRIVING
PROGRAMMABLE LOW SIDE DRIVER OVER CURRENT LIMIT PROTECTION
UNDER CURRENT DIAGNOSTIC
INPUT OVERVOLTAGE PROTECTION
VERY LOW STAND-BY CURRENT
THERMAL PROTECTION WITH HYSTERESIS

Pinout

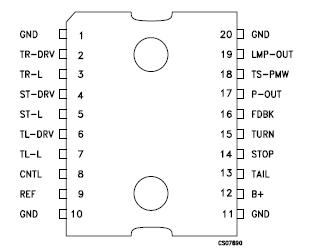

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_B+	Transient Supply Voltage (load dump)	60	V
V_B+	Operating Supply Voltage	24	V
V_TURN, V_STOP, V_TAIL	TURN, STOP and TAIL input pins voltage	VB+ +0.3	V
I_TURN, I_STOP, I_TAIL	TURN, STOP and TAIL pins current	± 10	mA
I_TR-DRV, I_TL-DRV, I_ST-DRV	TR-DRV, TL-DRV and ST-DRV pins sink current	1.5	A
I_LMP-OUT	LMP-OUT pin sink current	120	mA
V_P-OUT	P-OUT DC Voltage	60	V
I_P-OUT	P-OUT pin sink current	Internally Limited	A
T_stg	Storage Temperature Range	-55 to +150
T_J	Operating Junction Temperature Range	-40 to +125

Description

The STLC1, a device realized with the well established BCD technology, is a fixed frequency fully monolithic SMPS, with three independent smart low side driver, primarily intended for automotive rear led lamps driving.

The STLC1 output voltage is set using a simple resistor divider. Thermal shutdown with hysteresis, input over-voltage and overcurrent protections give robust design solutions.
