STLC2150

Bluetooth Bluetooth Radio Rcvr

product image

STLC2150 Picture
See larger image
SeekIC No. : 00609340 Detail

STLC2150: Bluetooth Bluetooth Radio Rcvr

STLC2150 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STLC2150
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Bluetooth Radio Transceiver Operating Supply Voltage : 2.62 V to 2.78 V
Package / Case : VFQFPN-48 Packaging : Tube

Description

Operating Frequency :
Type : Bluetooth Radio Transceiver
Operating Supply Voltage : 2.62 V to 2.78 V
Package / Case : VFQFPN-48
Packaging : Tube


Features:

Bluetooth® v.1.2 specification compliant
Fully integrated single chip:
transceiver with minimum of external RF components
PLL completely integrated
Integrated antenna switch
Supports Power Class 2 and 3 operation with power control
Supports Power Class 1 operation with an external Power Amplifie
Outstanding maximum usable input signal
Interface with base-band:
BlueRF compatible
unidirectional
received data: RxMode2 and RxMode2+ are supported
serial interface: JTAG
CMOS technology
Standard VFQFPN-48 package
Low standby power consumption
Extended temperature range
Compliant to automotive specification AEC-Q100


Application

Wireless data transmission applications to 432 Kbps symmetrical or 721 Kbps asymmetrical.
Typical applications in which the STLC2150 is used are:
Computer peripherals
Modems
Cameras
Portable computers, PDA
Handheld data transfer devices
Mobile phone
Other types of devices that require the wireless communication provided by Bluetooth®.


Pinout

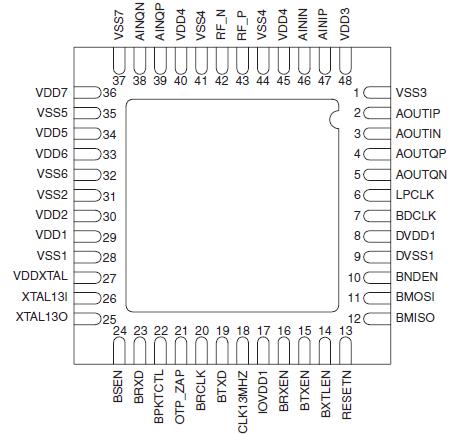

Connection Diagram


Specifications

Symbol Conditions Min Max Unit
VDD Power supply Analogue and
Digital Core		 VSS 0.3 3.5 V
VIN Input voltage on any pin VDD + 0.3 AND < 3.5(*)
VDDIO + 0.3 AND < 4.6		 VDDIO + 0.3 V
VSSDIF Maximum voltage difference
between different VSS* pins		 -0.3 0.3 V
VDDIO Power supply for digital I/O VSS 0.3 4.6 V
(*) Analogue test and RF pins only.


Description

The STLC2150 is a fully integrated Bluetooth® single chip radio transceiver. Together with a BB processor,like STLC2410, it offers a compact and complete solution for short-range wireless connectivity for a variety of applications.

The STLC2150 implements a low-IF receiver for Bluetooth® modulated input signals and no external IF filtering is required. The GFSK demodulator is fully integrated and supplies digital output data and RSSI.The transmit section features a fully integrated GFSK modulator, followed by a direct up-conversion stage,giving an output signal of 0 dBm. Optional power control is available.

STLC2150 On-chip VCO covers full Bluetooth® band and contains all of the tank resonator circuitry. Unidirectional BlueRF compatible interface and 4 wires serial JTAG interface are used to control all functions of radio transceiver, enabling operation with wide range of BB processors.
