SP9504

PinoutSpecificationsVDD - GND .................................................................... -0.3V, +6.0VVSS - GND .................................................................... +0.3V, -6.0VVDD - VSS ...................................................................-0.3V, +12.0VVREF ....

product image

SP9504 Picture
See larger image
SeekIC No. : 004500851 Detail

SP9504: PinoutSpecificationsVDD - GND .................................................................... -0.3V, +6.0VVSS - GND .................................................................... +0.3V, -...

SP9504 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP9504
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

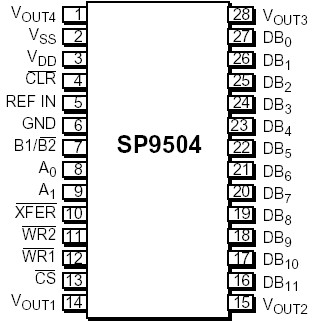

Connection Diagram


Specifications

VDD - GND .................................................................... -0.3V, +6.0V
VSS - GND .................................................................... +0.3V, -6.0V
VDD - VSS ...................................................................-0.3V, +12.0V
VREF .................................................................................. VSS, VDD
DIN .................................................................................... VSS, VDD
Power Dissipation
Plastic DIP .......................................................................... 375mW
(derate 7mW/°C above +70°C)
Small Outline ...................................................................... 375mW
(derate 7mW/°C above +70°C)


Description

The SP9504 is a low power replacement for the popular SP9345, Quad 12-Bit Digital-to-Analog Converter. It features +4.5V output swings when using ±5 volt supplies. The converter is doublebuffered for easy microprocessor interface. Each 12-bit DAC is independently addressable and all DACS may be simultaneously updated using a single transfer command. The output settlingtime is specified at 4ms. The SP9504 is available in 28pin SOIC and plastic DIP packages, specified over commercial temperature range.
