Product Details

Description



Pinout

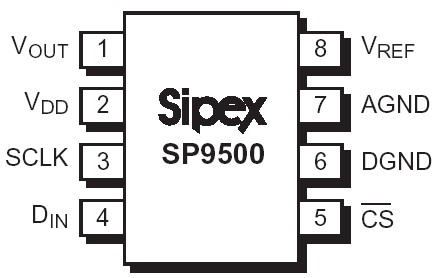

Connection Diagram


Specifications

VDD - DGND .................................................................. -0.3V,+6.0V
VREF ................................................................................ DGND, VDD
AGND .............................................................................. DGND, VREF
DIN .................................................................................. DGND, VDD
Power Dissipation
Plastic DIP .......................................................................... 375mW
(derate 7mW/°C above +70°C)
Small Outline ...................................................................... 375mW
(derate 7mW/°C above +70°C)


Description

The SP9500 is a low power 12-Bit Digital-to-Analog Converter. It features 0.5 to 4.5V output swing when using +5volt supply. The converter uses a standard 3wire serial interface compatible with SPI™, QSPI™ and Microwire™. The output settling-time is specified at 7.5ms. The SP9500 is available in 8pin 0.15" SOIC and DIP packages, specified over commercial and industrial temperature ranges.
