SP9501

PinoutSpecificationsVDD - GND ..................................................................... -0.3V,+6.0VVSS - GND .................................................................... +0.3V, -6.0VVDD - VSS................................................................... -0.3V, +12.0VVREF ....

product image

SP9501 Picture
See larger image
SeekIC No. : 004500849 Detail

SP9501: PinoutSpecificationsVDD - GND ..................................................................... -0.3V,+6.0VVSS - GND .................................................................... +0.3V, -...

SP9501 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP9501
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

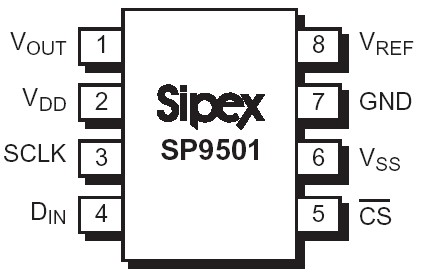

Connection Diagram


Specifications

VDD - GND ..................................................................... -0.3V,+6.0V
VSS - GND .................................................................... +0.3V, -6.0V
VDD - VSS................................................................... -0.3V, +12.0V
VREF ................................................................................... VSS, VDD
DIN .................................................................................... VSS, VDD
Power Dissipation
Plastic DIP .......................................................................... 375mW
(derate 7mW/°C above +70°C)
Plastic LCC ......................................................................... 375mW
(derate 7mW/°C above +70°C)
Small Outline ...................................................................... 375mW
(derate 7mW/°C above +70°C)


Description

The SP9501 is a low power 12-Bit Digital-to-Analog Converter. It features ±4.5V output swings when using ±5 volt supplies. The converter uses a standard 3wire serial interface compatible with SPI™, QSPI™ and Microwire™. The output settling-time is specified at 4ms. The SP9501 is available in 8pin 0.15" SOIC and DIP packages, specified over commercial and industrial temperature ranges.
