Product Details

Description



Features:

The main features of the TUSB2140B hub and embedded function are listed in the following sections.


Pinout

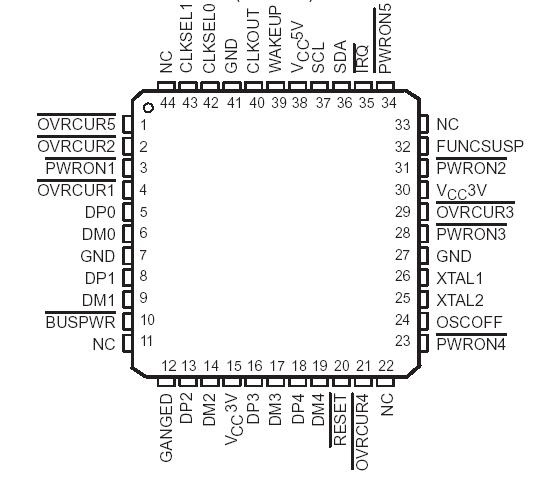

Connection Diagram


Specifications

Supply voltage range, VCC3V (see Note 1)  . . . . . . . . . . . . . . . . . . .. . . . .0.5 V to 3.8 V
Supply voltage range, VCC5V (see Note 1)  . . . . . . . . . . . . .  . . . . . . . . . .0.5 V to 5.5 V
Input voltage range, VI: (3.3 VCC3V)  . . . . . . . . . . . . . . . . .. . . .0.5 V to VCC3V + 0.5 V
                                       (5 VCC5V)  . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC5V + 0.5 V
Output voltage range, VO (3.3 VCC3V) . . . . . . . . . . . . . . . . . . . .0.5 V to VCC3V + 0.5 V
Input clamp current, IIK, (VI < 0 V or VI > VCC3V)  . . . . . . . . . . . . . . . . . . . . . . . .±20 mA
Output clamp current, IOK, (VO < 0 V or VO > VCC3V)  . . . . . . . . . . . . . .  .  . . . . .±20 mA
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
NOTE 1: All voltage levels are with respect to GND.
