SA9103C

Features: · Performs bidirectional active and reactive power/energy, frequency and voltage measurement· Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters· Protected against ESD· Total power consumption rating below 25mW· Adaptable to different current sensor technol...

product image

SA9103C Picture
See larger image
SeekIC No. : 004483831 Detail

SA9103C: Features: · Performs bidirectional active and reactive power/energy, frequency and voltage measurement· Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters· Protected a...

SA9103C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA9103C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Performs bidirectional active and reactive power/energy, frequency and voltage measurement
· Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters
· Protected against ESD
· Total power consumption rating below 25mW
· Adaptable to different current sensor technologies
· Operates over a wide temperature range
· Serial interface having a RS232 protocol
· Precision voltage reference on-chip
· Tri-state output to allow parallel connection of devices


Pinout

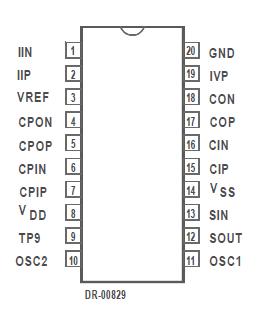

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Supply Voltage VDD -VSS -0.3 6.0 V
Current on any pin IPIN -150 +150 mA
Storage Temperature TSTG -40 +125 °C
Operating Temperature TO -10 +70 °C


* Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.




Description

The SAMES SA9103C bidirectional Single Phase Power/Energy metering integrated circuit has a serial interface with a RS232 protocol, ideal for use with a -Controller. The SA9103C performs the calculation for active and reactive power.

The integrated values of SA9103C for active and reactive energy as well as the mains frequency and voltage information are
accessable through the RS232-Interface as 16 bit values.

This innovative universal single phase power/energy metering integrated circuit, SA9103C is ideally suited for energy calculations in applications such as electricity dispensing systems (ED's), residential municipal metering and factory energy metering and control.

The SA9103C integrated circuit is available in both 20 pin dual-in-line plastic (DIP-20), as well as 20 pin small outline (SOIC-20) package types.
