SA9102C

* Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.

The SAMES SA9102C Single Phase unidirectional Power/Energy metering integrated circuit generates a pulse rate
output, the frequency of which is proportional to the power consumption. The SA9102C performs the calculation for
active power.

This method SA9102C of calculation takes the power factor into account.

Energy consumption of SA9102C is determined by the power measurement being integrated over time.

This innovative universal single phase power/energy metering integrated circuit, SA9102C is ideally suited for energy calculations in applications such as electricity dispensing systems (ED's), residential municipal metering and factory energy metering and control.

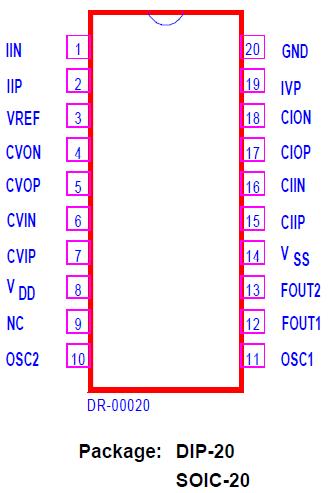

The SA9102C integrated circuit is available in both 20 pin dual-in-line plastic (DIP-20), as well as 20 pin small outline (SOIC-20) package types.
