Features: CPU
• SAM8 CPU core
Memory
• Data memory: 1040-byte of internal register file (Excluding LCD RAM)
• Program memory: 48-Kbyte internal program memory (ROM)
External Interface
• 64-Kbyte external data memory area
Instruction Execution Time
• 750 ns at 8 MHz (minimum, Main oscillator)
• 183 s at 32,768 Hz (minimum, Sub oscillator)
Interrupts
• 7 interrupt levels and 19 interrupt sources
• 19 vectors
• Fast interrupt processing feature (for one selected interrupt level)
I/O Ports
• Five 8-bit I/O ports (P0P4) and one 7-bit I/O port (P5) for a total of 47 bit-programmable pins
8-Bit Basic Timer
• One programmable 8-bit basic timer (BT) for oscillation stabilization control or watchdog
timer (software reset) function
Watch Timer
• Time internal generation: 3.91 ms, 0.5 s at 32,768 Hz
• Four frequency outputs to BUZ pin
• Clock source generation for LCD
Timers and Timer/Counters
• One 8-bit timer/counter (Timer 0) with three operating modes: Interval, Capture, and PWM
• One 16-bit timer/counter (Timer 1) with two 8-bit timer/counter modes
LCD Controller/Driver
• Up to 32 segment pins
• 3, 4, and 8 common selectable
• Choice of duty cycle
• All dots can be switched on/off
• Internal resistor circuit for LCD bias
Serial Port
• One synchronous SIO
A/D Converter
• 8-bit conversion resolution * 4 channel
• 34 s conversion time (4 MHz CPU clock, fxx/4)
Oscillation Sources
• Crystal, ceramic, or RC for main system clock
• Crystal or external oscillator for subsystem clock
• Main system clock frequency: 8 MHz
• Subsystem clock frequency: 32.768 kHz
Power-down Modes
• Main idle mode (only CPU clock stops)
• Sub idle mode
• Stop mode (main/sub system oscillation stops)
Operating Temperature Range
• 40 to + 85
Operating Voltage Range
• 2.0 V to 5.5 V at 32 kHz (sub clock)-6 MHz (main clock)
• 2.2 V to 5.5 V at 8 MHz
Package Type
• 80-pin TQFP, 80-pin QFP

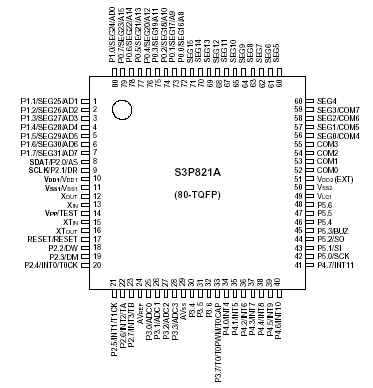

Pinout
Specifications
|
Parameter |
Symbol |
Conditions |
Rating |
Unit |
| Supply voltage |
VDD |
- |
0.3 to + 6.5 |
V |
| Input voltage |
VIN |
All I/O ports |
0.3 to VDD + 0.3 |
V |
| Output voltage |
VO |
- |
-0.3 to VDD + 0.3 |
V |
| Output current high |
IOH |
One I/O port active |
-18 |
mA |
| All I/O ports active |
-60 |
|
| Output current low |
IOL |
One I/O port active |
+ 30 (peak value) |
mA |
|
+ 15 (note) |
| Ports 0, 1, 2, and 3 |
+ 100 (peak value) |
|
+ 60 (note) |
| Ports 4 and 5 |
+ 100 (peak value) |
|
+ 60 (note) |
| Operating temperature |
TA |
- |
40to + 85 |
|
| Storage temperature |
TSTG |
- |
65 to + 150 |
|
NOTE: The values for Output Current Low (IOL) are calculated as Peak Value
*Duty .
DescriptionThe S3C821A/S3P821A single-chip CMOS microcontroller is fabricated using the highly advanced CMOS process, based on Samsung's newest CPU architecture.
The S3C821A is a microcontroller with a 48-Kbyte mask-programmable ROM embedded.
The S3P821A is a microcontroller with a 48-Kbyte one-time-programmable ROM embedded.
Using a proven modular design approach, Samsung engineers have successfully developed the S3C821A/P821A/S3P821A by integrating the following peripheral modules with the powerful SAM8 core:
- Six programmable I/O ports, including five 8-bit ports and one 7-bit port, for a total of 47 pins.
- Twelve bit-programmable pins for external interrupts.
- One 8-bit basic timer for oscillation stabilization and watchdog functions (system reset).
- One 8-bit timer/counter and one 16-bit timer/counter with selectable operating modes.
- Watch timer for real time.
- 4-input A/D converter
- Serial I/O interface
The S3C821A/P821A/S3P821A is versatile microcontroller for cordless phone, pager, etc. They are currently available in 80-pin TQFP and 80-pin QFP package.
S3P821A Data Sheet
