Product Details

Description



Features:

CPU
• SAM87 CPU core

Memory
• 272-byte general purpose register area
• 16-Kbyte internal program memory
• ROM-less operating mode

External Interface
• 64-Kbyte external data memory area
• 64-Kbyte external program memory area (ROMless mode)

Instruction Set
• 78instructions
• IDLE and STOP instructions for power-down mode

Instruction Execution Time
• 500 ns at 12 MHz fCPU (Min.)

Interrupts
• 17 interrupt sources
• 17 interrupt vectors
• Eight interrupt levels
• Fast interrupt processing

General I/O
• Four nibble-programmable ports
• One bit-programmable port
• Two bit-programmable ports for external interrupts

Timers
• Two 8-bit timers with interval timer and PWM modes

Timer/Counters
• Two 16-bit general-purpose timer/counters

Basic Timer
• One 8-bit basic timer (BT) for oscillation stabilization control and watch dog timer function.

Serial Port
• One synchronous operating mode and three fullduplex asynchronous UART modes

Operating Temperature Range
• 40 to + 85

Operating Voltage Range
• 2.7 V to 5.5 V

Package Types
• 64-pin SDIP, 64-pin QFP


Pinout

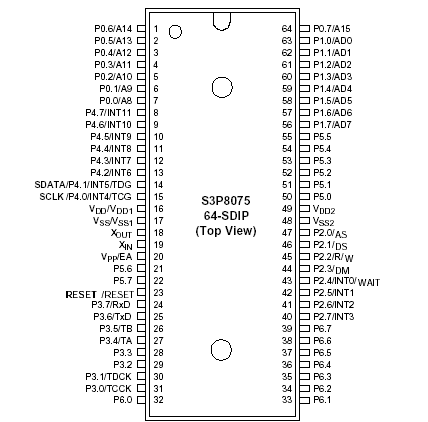

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD

0.3 to +6.5
V
Input voltage
VI1
 All ports (in input mode)
0.3 to VDD + 0.3

Output voltage
VO
All ports (in output mode)
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
-10
mA
All I/O pins active
60
Output current low
IOL
One I/O pin active
+ 30
mA
Total pin current for ports 04
+ 100
Total pin current for ports 5 and 6
+ 100
Operating temperature
TA

40 to + 85
Storage temperature
TSTG

65 to + 150




Description

S3C8075/S3P8075 single-chip 8-bit microcontrollers are based on the powerful SAM87 CPU architecture. The internal register file is logically expanded to increase the on-chip register space. The S3C8075 has 16-Kbyte mask programmable ROM. The S3P8075 has 16-Kbyte one-time-programmable EPROM.

Following S3P8075's modular design approach, the following peripherals are integrated with the SAM87 core:

  - Seven programmable I/O ports (total 56 pins)
  - One 8-bit basic timer for oscillation stabilization and watchdog functions
  - One synchronous operating mode and three full-duplex asynchronous UART modes
  - Two 8-bit timers with interval timer and PWM modes
  - Two 16-bit general-purpose timer/counters
