S3P8095

Features: CPU• SAM87 CPU coreMemory• 16K-byte internal program memory (ROM)• 317-byte internal register fileInstruction Set• 78 instructions• IDLE and STOP instructions added for powerdown modesInstruction Execution Time• 750 ns at 8-MHz fOSC (minimum)Interrupts...

product image

S3P8095 Picture
See larger image
SeekIC No. : 004482279 Detail

S3P8095: Features: CPU• SAM87 CPU coreMemory• 16K-byte internal program memory (ROM)• 317-byte internal register fileInstruction Set• 78 instructions• IDLE and STOP instructions...

S3P8095 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3P8095
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM87 CPU core

Memory
• 16K-byte internal program memory (ROM)
• 317-byte internal register file

Instruction Set
• 78 instructions
• IDLE and STOP instructions added for powerdown modes

Instruction Execution Time
• 750 ns at 8-MHz fOSC (minimum)

Interrupts
• Six interrupt levels and 18 interrupt sources
• 15 vectors (14 sources have a dedicated vector address and four sources share a single vector)
• Fast interrupt processing feature (for one selected interrupt level)

I/O Ports
• Three 8-bit I/O ports (P0P2) and one 2-bit port (P3) for a total of 26 bit-programmable pins
• Twelve input pins for external interrupts

Timers and Timer/Counters
• One programmable 8-bit basic timer (BT) for oscillation stabilization control or watchdog
   timer (software reset) function
• One 8-bit timer/counter (Timer 0) with three operating modes; Interval, Capture and PWM
• One 16-bit timer/counter (Timer 1) with two operating modes; Interval and Capture

Carrier Frequency Generator
• One 8-bit counter with auto-reload function and one-shot or repeat control (Counter A)

Operating Temperature Range
• 20 to + 85

Operating Voltage Range
• 2.0 V to 5.5 V at 4 MHz fOSC
• 2.4 V to 5.5 V at 8 MHz fOSC

Package Type
• 32-pin SOP
• 32-pin SDIP



Pinout

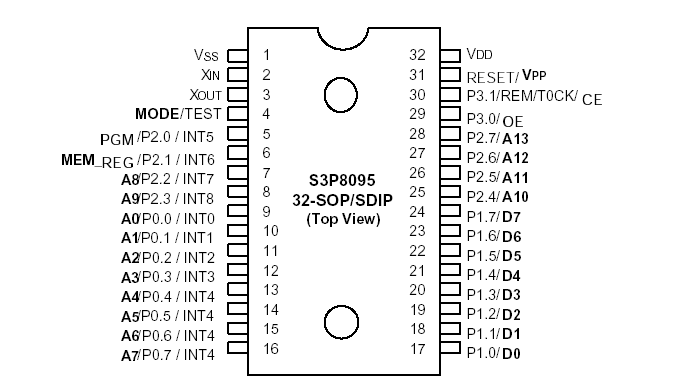

Connection Diagram




Specifications

Parameter
Symbol
 Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to + 6.5
V
Input voltage
VIN
-
0.3 to VDD + 0.3
V
Output voltage
VO
All output pins
-0.3 to VDD + 0.3
V
Output current high
IOH
 One I/O pin active
-18
mA
All I/O pins active
-60
Output current low
IOL
 One I/O pin active
+30
mA
Total pin current for ports 0, 1, and 2
+100
Total pin current for port 3
+20
Operating temperature
TA
-
20 to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3C8095/S3P8095 single-chip CMOS microcontroller is fabricated using a highly advanced CMOS process and is based on Samsung's newest CPU architecture.

The S3C8095 is the microcontroller which has 16- Kbytes mask-programmable ROM.
The S3P8095 is the microcontroller which has 16- Kbytes one-time-programmable EPROM.

Using a proven modular design approach, Samsung engineers developed the S3C8095/S3P8095 by
integrating the following peripheral modules with the powerful SAM87 core:

  - Four programmable I/O ports, including three 8-bit ports and one 2-bit port, for a total of 26 pins.
  - Twelve bit-programmable pins for external interrupts.
  - One 8-bit basic timer for oscillation stabilization and watchdog functions (system reset).
  - One 8-bit timer/counter and one 16-bit timer/counter with selectable operating modes.
  - One 8-bit counter with auto-reload function and one-shot or repeat control.

The S3P8095 is a versatile general-purpose microcontroller. It is currently available in a 32-pin SOP and SDIP package.
