S3P80E5

Features: CPU• SAM87 CPU coreMemory• 16-Kbyte internal program memory (ROM): S3C80E5• 24-Kbyte internal program memory (ROM): S3C80E7• 256-byte internal (RAM): 800080FFH• Data memory: 317-byte internal register fileInstruction Set• 78 instructions• IDLE an...

product image

S3P80E5 Picture
See larger image
SeekIC No. : 004482281 Detail

S3P80E5: Features: CPU• SAM87 CPU coreMemory• 16-Kbyte internal program memory (ROM): S3C80E5• 24-Kbyte internal program memory (ROM): S3C80E7• 256-byte internal (RAM): 800080FFH̶...

S3P80E5 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3P80E5
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM87 CPU core

Memory
• 16-Kbyte internal program memory (ROM): S3C80E5
• 24-Kbyte internal program memory (ROM): S3C80E7
• 256-byte internal (RAM): 800080FFH
• Data memory: 317-byte internal register file

Instruction Set
• 78 instructions
• IDLE and STOP instructions added for powerdown modes

Instruction Execution Time
• 750 ns at 8 MHz fOSC (minimum)

Interrupts
• Six interrupt levels and 18 interrupt sources
• 15 vectors (14 sources have a dedicated vector address and four sources share a single vector)
• Fast interrupt processing feature (for one selected interrupt level)

I/O Ports
• Three 8-bit I/O ports (P0P2) and one 2-bit port (P3) for a total of 26 bit-programmable pins
• Twelve input pins for external interrupts

Timers and Timer/Counters
• One programmable 8-bit basic timer (BT) for oscillation stabilization control or watchdog
   time (software reset) function
• One 8-bit timer/counter (Timer 0) with three operating modes; Interval, Capture, and PWM
• One 16-bit timer/counter (Timer 1) with two operating modes; Interval and Capture

Carrier Frequency Generator
• One 8-bit counter with auto-reload function and one-shot or repeat control (Counter A)

Back-up mode
• When reset pin is low level or when VDD is lower than VLVD, the chip enters back-up mode to
   reduce current consumption.

Low Voltage Detect Circuit
• Low voltage detect for reset or back-up mode input.
• Low level detect voltage : 2.2 V (Typ) 100 mV/+ 200 mV

Operating Temperature Range
• 40  to + 85

Operating Voltage Range
• 2.0 V to 5.5 V at 4 MHz fOSC
• 2.1 V to 5.5 V at 8 MHz fOSC

Package Type
• 32-pin SOP
• 32-pin SDIP
• 40-pin DIP




Pinout

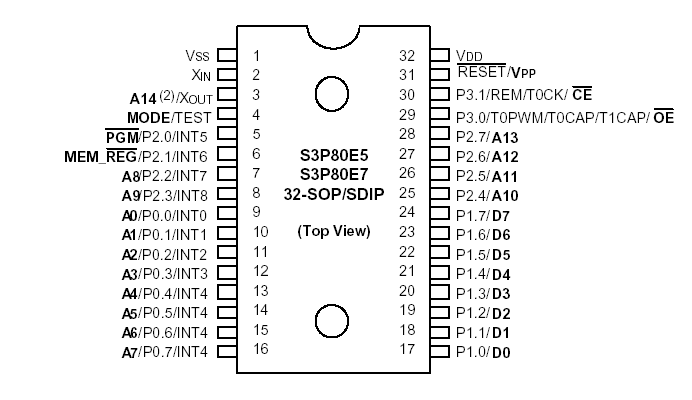

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to + 6.5
V
Input voltage
VIN
-
0.3 to VDD + 0.3
V
Output voltage
VO
All output pins
-0.3 to VDD + 0.3
V
Output current high
IOH
 One I/O pin active
-18
mA
All I/O pins active
-60
Output current low
IOL
 One I/O pin active
+30
mA
Total pin current for ports 0, 1, and 2
+100
Total pin current for port 3
+40
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3C80E5/S3P80E5 single-chip CMOS microcontroller is fabricated using a highly advanced CMOS process, based on Samsung's newest CPU architecture.

The S3C80E5/C80E7 is the microcontroller which has 16/24-Kbyte mask-programmable ROM. The
S3P80E5/P80E7 is the microcontroller which has 16/24-Kbyte one-time-programmable EPROM.

Using a proven modular design approach, Samsung engineers developed the S3C80E5/C80E7/S3P80E5 by
integrating the following peripheral modules with the powerful SAM87 core:

  - Four programmable I/O ports, including three 8-bit ports and one 2-bit port, for a total of
     26 pins.
  - Internal LVD circuit and twelve bitprogrammable pins for external interrupts.
  - One 8-bit basic timer for oscillation stabilization and watchdog functions (system reset).
  - One 8-bit timer/counter and one 16-bit timer/counter with selectable operating modes.
  - One 8-bit counter with auto-reload function and one-shot or repeat control.

The S3C80E5/C80E7/S3P80E5 is a versatile general-purpose microcontroller which is especially suitable for use as unified remote transmitter controller. It is currently available in a 32-pin SOP and SDIP package for S3C80E5 and S3C80E7. And available in 40 DIP package only for S3C80E7.
