Features:

• No potentiomenter required
• Direct interface to SCR
• Supply voltage derived from AC line 26V shunt
• Adjustable sensitivity
• Grounded neutral fault detection
• Meets U.L. 943 standards
• 450µA quiescent current
• Ideal for 120V or 220V systems





Pinout

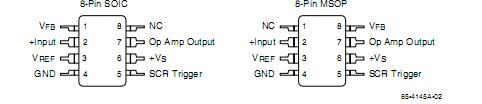

  Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
RV4145AMT Full Production Green $0.414 SOIC 8 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: RV4145AM
RV4145AN Full Production Green $0.414 DIP 8 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: RV4145AN
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product RV4145A is available. Click here for more information .





Description

The RV4145A is a low power controller for AC outlet ground fault interrupters. These devices detect hazardous grounding conditions, such as equipment (connected to opposite phases of the AC line) in contact with a pool of water and open circuits the line before a harmful or lethal shock occurs.

Contained internally are a 26V zener shunt regulator, an op amp, and an SCR driver. WIth the addition of two sense transformers, a bridge rectifier, an SCR, a relay, and a few additional components, the RV4145A will detect and protect against both hot wire to ground and neutral wire to ground faults. The simple layout and conventional design ensure ease of application and long-term reliability.
