Features:

• Powered from the AC line
• Built-in bridge rectifier
• Direct interface to SCR
• 350 mA quiescent current
• Adjustable trip current
• Adjustable time delay
• Minimum external components
• Meets UL 943 requirements
• Specifically for two-wire systems
• For use with 110V or 220V systems



Pinout

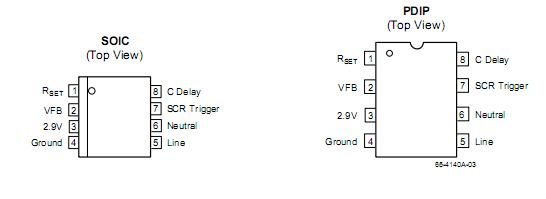

  Connection Diagram


Specifications

Parameter Min. Typ. Max. Units
Supply Current       7 mA
Internal Power Dissipation       500 mW
Storage Temperature Range   -65   +150 °C
Operating Temperature Range   -35   +80 °C
Lead Soldering Temperature 60 Seconds, DIP     +300 °C
10 Seconds, SOIC     +260 °C



Description

The RV4140A is a low power controller for AC outlet appliance leakage circuit interrupters. These devices detect hazardous current paths to ground such as an appliance falling into water. The interrupter then open circuits the line before a harmful or lethal shock occurs.

Internally, the RV4140A has a diode bridge rectifier, zener shunt regulator, op amp, current reference, time delay circuit, latch and SCR driver.

An external sense transformer, SCR, relay, two resistors and three capacitors complete the design of the circuit interrupter. The simple layout and minimum component count ensure ease of application and long term reliability.
