RV4136

Supply voltage (see Note 1): V_CC+, RC4136 and RV4136..........................18 V
V_CC+, RM4136  ............................................... 22 V
V_CC, RC4136 and RV4136   ....................................... 18 V
V_CC, RM4136   ..............................................22 V
Differential input voltage, V_ID (see Note 2)  ................................±30 V
Input voltage, V_I (any input) (see Notes 1 and 3)   ............................ ±15 V
Duration of output short circuit to ground, one amplifier at a time (see Note 4) ............ Unlimited
Continuous total dissipation   ............................See Dissipation Rating Table
Package thermal impedance, _JA (see Note 5): D package ....................... 86°C/W
N package   ............................................... 80°C/W
Case temperature for 60 seconds: FK package ..............................260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or N package  ............ 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J or W package   ............300°C
Storage temperature range, T_stg   ...............................65°C to 150°C

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. All voltage values, unless otherwise noted, are with respect to the midpoint between VCC+ and VCC.
2. Differential voltages are at IN+ with respect to IN.
3. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 V, whichever is less.
4. Temperature and/or supply voltages must be limited to ensure that the dissipation rating is not exceeded.
5. The package thermal impedance is calculated in accordance with JESD 51-7.

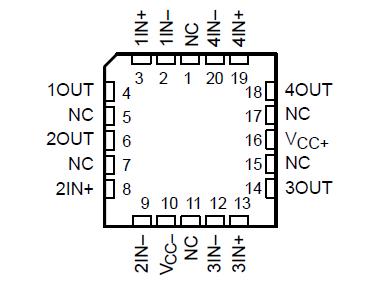

The RC4136, RM4136, and RV4136 are quad general-purpose operational amplifiers, with each amplifier electrically similar to the A741, except that offset null capability is not provided.

The high common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage-follower applications. The devices are short-circuit protected and the internal frequency compensation ensures stability without external components.

The RC4136 is characterized for operation from 0°C to 70°C, the RM4136 is characterized for operation over the full military temperature range of 55°C to 125°C, and the RV4136 is characterized for operation from 40°C to 85°C.
