Features: • 5V operation• 2xQ output, Q/2 output, Q output• Outputs tri-state while RST low• Internal loop filter RC network• Low noise TTL level outputs• < 500ps output skew, Q0-Q4• PLL disable feature for low frequency testing• Balanced Drive Ou...
QS5917T-100TQ: Features: • 5V operation• 2xQ output, Q/2 output, Q output• Outputs tri-state while RST low• Internal loop filter RC network• Low noise TTL level outputs• < 50...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

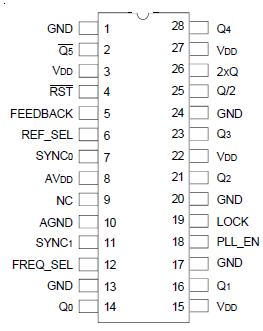

Symbol |
Rating |
Max |
Unit |
Supply Voltage to Ground |
0.5to+7 |
V | |
DC Input Voltage VIN |
0.5to+7 |
V | |
AC Input Voltage (pulse width 20ns) |
3 |
V | |
Maximum Power Dissipation (TA = 85°C) |
1.2 |
W | |
TSTG |
Storage Temperature Range |
65to+150 |
°C |
The QS5917T-100TQ Clock Driver uses an internal phase locked loop (PLL) to lock low skew outputs to one of two reference clock inputs. Eight outputs are available: Q0-Q4, 2xQ, Q/2, Q5. Careful layout and design insures < 500ps skew between the Q0-Q4, and Q/2 outputs. The QS5917T-100TQ includes an internal RC filter which provides excellent jitter characteristics and eliminates the need for external components. In addition, TTL level outp uts reduce clock signal noise. Various combinations of feedback and a divide-by-2 in the VCO path allow applications to be customized for linear VCO operation over a wide range of input SYNC frequencies. The VCO can also be disabled by the PLL_EN signal to allow low frequency or DC testing. The LOCK output asserts to indicate when phase lock has been achieved. The QS5917T-100TQ is designed for use in high-performance workstations, multi-board computers, networking hardware, and mainframe systems. Several can be used in parallel or scattered throughout a system for guaranteed low skew, system-wide clock distribution networks.
