PMB2349

Features: · Operation range 2.7 to 5.0 V· Ultra low phase noise· Ultra low spurious· Faster lock-in times· New bipolar power modes· New programmable Reference Amplifier· External or internal reference current setting for PD outputs· Low operating current consumption· Programmable power down modes·...

product image

PMB2349 Picture
See larger image
SeekIC No. : 004463966 Detail

PMB2349: Features: · Operation range 2.7 to 5.0 V· Ultra low phase noise· Ultra low spurious· Faster lock-in times· New bipolar power modes· New programmable Reference Amplifier· External or internal referen...

PMB2349 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PMB2349
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operation range 2.7 to 5.0 V
· Ultra low phase noise
· Ultra low spurious
· Faster lock-in times
· New bipolar power modes
· New programmable Reference Amplifier
· External or internal reference current setting for PD outputs
· Low operating current consumption
· Programmable power down modes
· High input sensitivity and high input frequencies: PLL1 (RF): 2.8 GHz PLL2 (IF): 600 MHz
· Programmable dual modulus prescaler divide ratio:
    PLL1: 1:64/65 or 1:32/33
    PLL2: 16/17 or 1:8/9
    Dividing ratios:
    A counters: PLL1: 0 to 63
    PLL2: 0 to 15
    N counters: PLL1: 3 to 16,383
    PLL2: 3 to 16,383
    R counters 3 to 16,383 for PLL1 and PLL2
· Fast phase detectors and charge pump outputs without dead zone
· Switchable polarity and programmable phase detector currents
· Fast serial 3-wire bus interface with ow threshold voltage Schmitt-Trigger nputs for interfacing with low oltage baseband circuits
· Two data registers in PLL2 for fast F band switching
· A programmable output port for ock detect or general porpose VCO switch etc.).


Pinout

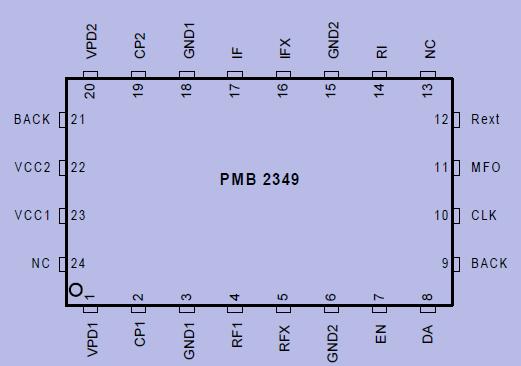

Connection Diagram


Description

The PMB 2349 is a RF/IF Dual-PLL requency synthesizer implemented in nfineon's high speed BiCMOS technology 6HFC. PMB2349 contains wo PLLs with integrated prescalers specially designed for use in battery owered radio equipment and mobile elephones. Primary applications are ingle- and dual-band digital cellular ystems e.g. GSM, PCN (DCS 1800) nd PCS systems.
