PMB2347

Features: · Operation range 2.7 to 5.0 V· Low operating current consumption· Programmable power down modes· High input sensitivity and high inputfrequencies: PLL1 (RF): 2.8 GHzPLL2 (IF): 500 MHzn Programmable dual modulusprescaler divide ratio:PLL1: 1:64/65 or 1:32/33PLL2: 16/17 or 1:8/9Dividing r...

product image

PMB2347 Picture
See larger image
SeekIC No. : 004463965 Detail

PMB2347: Features: · Operation range 2.7 to 5.0 V· Low operating current consumption· Programmable power down modes· High input sensitivity and high inputfrequencies: PLL1 (RF): 2.8 GHzPLL2 (IF): 500 MHzn Pr...

PMB2347 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PMB2347
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Operation range 2.7 to 5.0 V
·  Low operating current consumption
·  Programmable power down modes
·  High input sensitivity and high input
frequencies: PLL1 (RF): 2.8 GHz
PLL2 (IF): 500 MHz
n Programmable dual modulus
prescaler divide ratio:
PLL1: 1:64/65 or 1:32/33
PLL2: 16/17 or 1:8/9
Dividing ratios:
A counters: PLL1: 0 to 63
PLL2: 0 to 15
N counters: PLL1: 3 to 16,383
PLL2: 3 to 16,383
R counters 3 to 16,383 for PLL1 nd PLL2
·  Fast phase detectors and charge ump outputs without dead zone
·  High phase noise performance
·  Switchable polarity and programmable hase detector currents
·  External reference current setting or PD outputs
·  Fast serial 3-wire bus interface with ow threshold voltage Schmitt-Trigger nputs for interfacing with low oltage baseband circuits
·  Two data registers in PLL2 for fast F band switching
·  A programmable multi-functional utput port for lock detect (quasidigital ock detect) and test mode


Pinout

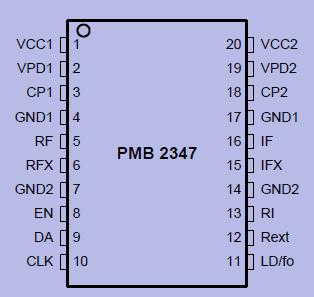

Connection Diagram


Description

The PMB 2347 is a RF/IF double PLL requency synthesizer implemented in nfineon' high speed BiCMOS technology 6HFC. PMB2347 contains two LLs with integrated prescalers especially esigned for use in battery powered adio equipment and mobile elephones. Primary applications of PMB2347 are ingle- and dual-band digital cellular ystems e.g. GSM, PCN (DCS 1800) nd PCS systems.
