Product Details

Description



Features:

` 19MHz to 65MHz crystal input.
` Output range: 9.5MHz 65MHz
` Complementary outputs: PECL or LVDS output.
` Selectable OE Logic (enable high or enable low).
` Supports 2.5V or 3.3V Power Supply.
` Available in 16 pin TSSOP package.

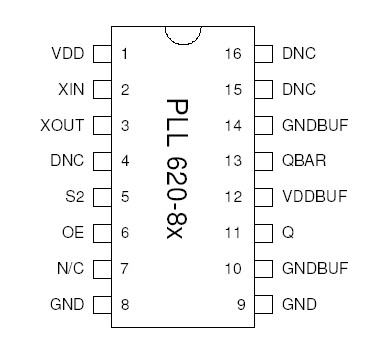

Pinout

Connection Diagram


Specifications

PARAMETERS Symbol MIN. MAX. Units
Supply Voltage VDD   4.6 V
Input Voltage, dc VI -0.5 VDD+0.5 V
Output Voltage, dc VO -0.5 VDD+0.5 V
Storage Temperature TS -65 150 °C
Ambient Operating Temperature* TA -40 85 °C
Junction Temperature TJ   125 °C
Lead Temperature (soldering, 10s)     260 °C
ESD Protection, Human Body Model     2 kV
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.


Description

The PLL620-88 (PECL) and PLL620-89 (LVDS) are XO ICs specifically designed to work with fundamental or 3rd OT crystals between 19MHz and 65MHz. The selectable divide by two feature extends the operation range from 9.5MHz to 65MHz. PLL620-88 and PLL620-89 require very low current into the crystal resulting in better overall stability. The OE logic feature allows selection of enable high or enable low.
