PLL600-27

Features: ` Low phase noise (-130 dBc @ 10kHz offset).` CMOS output with OE tri-state control.` Selectable oscillator on or off ( Sleep Mode ) feature in output disable mode` Ultra Low current consumption ( <2mA, <1.5mA at 27MHz, 3.3V respectively for PLL600-27 and PLL600-37)` Ultra Low ...

product image

PLL600-27 Picture
See larger image
SeekIC No. : 004463355 Detail

PLL600-27: Features: ` Low phase noise (-130 dBc @ 10kHz offset).` CMOS output with OE tri-state control.` Selectable oscillator on or off ( Sleep Mode ) feature in output disable mode` Ultra Low current c...

PLL600-27 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PLL600-27
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low phase noise (-130 dBc @ 10kHz offset).
` CMOS output with OE tri-state control.
` Selectable oscillator "on" or "off" ( Sleep Mode ) feature in output disable mode
` Ultra Low current consumption ( <2mA, <1.5mA at 27MHz, 3.3V respectively for PLL600-27 and PLL600-37)
` Ultra Low disable mode current (<2uA when disabled with osc. off)
` 10 to 52MHz fundamental or 3rd OT crystal input.
` 12mA drive capability at TTL output.
` Low jitter (RMS): 2.5ps period jitter.
` 1.8V, 2.5V and 3.3V DC operation.
` Available in 8 pin SOIC, 6 pin SOT or DIE.


Pinout

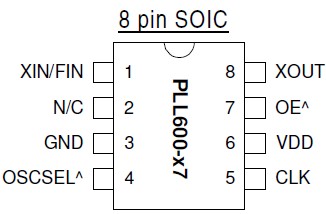

Connection Diagram


Specifications

PARAMETERS
SYMBOL
MIN.
MAX.
UNITS
Supply Voltage
VDD
4.6
V
Input Voltage, dc
VI
-0.5
VDD+0.5
V
Output Voltage, dc
VO
-0.5
VDD+0.5
V
Storage Temperature
TS
-65
150
°C
Ambient Operating Temperature*
TA
-40
85
°C
Junction Temperature
TJ
125
°C
Lead Temperature (soldering, 10s)
260
°C
ESD Protection, Human Body Model
2
kV



Description

The PLL600-27/-37 form a low cost family of XO IC's, designed to consume the lowest current on the market for the 10MHz to 52MHz range. It accepts fundamental resonant mode crystal input from 10 to 52MHz. Providing less than -130dBc at 10kHz offset at 30MHz and with a very low jitter (2.5 ps RMS period jitter) makes PLL600-27/-37 ideal for applications requiring low current frequency sources.
