PLL600-27F

Features: • Generates 5 CMOS outputs.• 10 to 52MHz fundamental or 3rd OT crystal input.• Low phase noise (-130 dBc @ 10kHz offset).• Low jitter (RMS): 2.5ps period jitter.• 12mA drive capability at TTL output.• 1.62V to 3.63V DC operation.• Available in 14...

product image

PLL600-27F Picture
See larger image
SeekIC No. : 004463356 Detail

PLL600-27F: Features: • Generates 5 CMOS outputs.• 10 to 52MHz fundamental or 3rd OT crystal input.• Low phase noise (-130 dBc @ 10kHz offset).• Low jitter (RMS): 2.5ps period jitter....

PLL600-27F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PLL600-27F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Generates 5 CMOS outputs.
• 10 to 52MHz fundamental or 3rd OT crystal input.
• Low phase noise (-130 dBc @ 10kHz offset).
• Low jitter (RMS): 2.5ps period jitter.
• 12mA drive capability at TTL output.
• 1.62V to 3.63V DC operation.
• Available in 14 pin 150mil SOIC.




Pinout

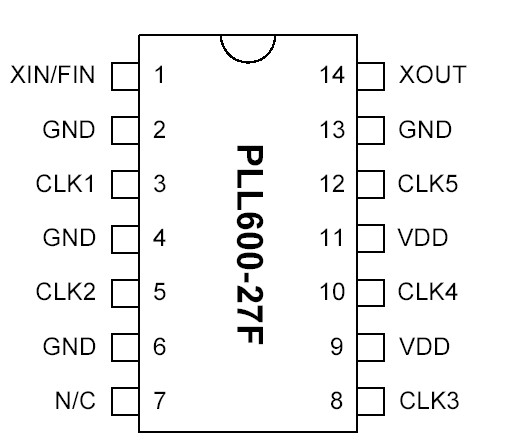

Connection Diagram




Specifications

PARAMETERS
SYMBOL
MIN.
MAX.
UNITS
Supply Voltage
Input Voltage, dc
Output Voltage, dc
Storage Temperature
Ambient Operating Temperature*
Junction Temperature
Lead Temperature (soldering, 10s)
ESD Protection, Human Body Model
VDD
VI
VO
TS
TA
TJ
-0.5
-0.5
-65
-40
4.6
VDD+0.5
VDD+0.5
150
85
125
260
2
V
V
V
°C
°C
°C
°C
kV
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above the operational limits noted in this specification is not implied.
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.




Description

The PLL600-27F is part of PhaseLink's low cost family of XO IC's, designed to replace multiple XO solutions saving the cost and board space of clock distribution buffers. In addition, it provides among the lowest current on the market for the 10MHz to 52MHz range. PLL600-27F accepts input crystals from 10 to 52MHz (fundamental resonant mode) and provides low phase noise (<-130dBc at 10kHz offset at 30MHz), and very low jitter (2.5 ps RMS period jitter) outputs.
