PLL602-35

Features: • Selectable 750kHz to 800MHz range.• Low phase noise output (@ 10kHz frequencyoffset, -140dBc/Hz for 19.44MHz, -127dBc/Hz for106.25MHz, -125dBc/Hz for 155.52MHz, -110dBc/Hz for 622.08MHz).• CMOS (PLL602-37), PECL (PLL602-35 andPLL602-38) or LVDS (PLL602-39) output.R...

product image

PLL602-35 Picture
See larger image
SeekIC No. : 004463370 Detail

PLL602-35: Features: • Selectable 750kHz to 800MHz range.• Low phase noise output (@ 10kHz frequencyoffset, -140dBc/Hz for 19.44MHz, -127dBc/Hz for106.25MHz, -125dBc/Hz for 155.52MHz, -110dBc/Hz fo...

PLL602-35 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PLL602-35
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Selectable 750kHz to 800MHz range.
• Low phase noise output (@ 10kHz frequency
offset, -140dBc/Hz for 19.44MHz, -127dBc/Hz for
106.25MHz, -125dBc/Hz for 155.52MHz, -
110dBc/Hz for 622.08MHz).
• CMOS (PLL602-37), PECL (PLL602-35 and
PLL602-38) or LVDS (PLL602-39) output.
• 12 to 25MHz crystal input.
• No external load capacitor required.
• Output Enable selector.
• Selectable 1/16 to 32x frequency multiplier.
• 3.3V operation.
• Available in 16-Pin (TSSOP or 3x3mm QFN).




Pinout

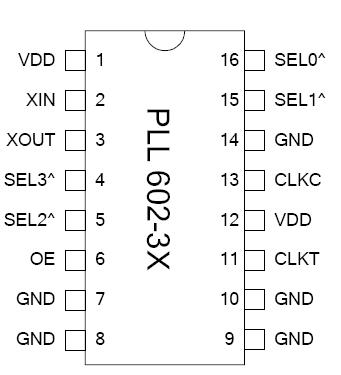

Connection Diagram




Specifications

PARAMETERS SYMBOL MIN. MAX. UNITS
Supply Voltage VDD 4.6 V
Input Voltage, dc VI -0.5 VDD+0.5 V
Output Voltage, dc VO -0.5 VDD+0.5 V
Storage Temperature TS -65 150 °C
Ambient Operating Temperature TA -40 85 °C
Junction Temperature TJ 125 °C
Lead Temperature (soldering, 10s) 260 °C
ESD Protection, Human Body Model 2 kV
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.




Description

The PLL602-35 (PECL with inverted OE), PLL602-37 (CMOS), PLL602-38 (PECL), and PLL602-39 (LVDS) are high performance and low phase noise XO IC chips. They provide phase noise performance as low as 125dBc at 1kHz offset (at 155MHz) and a typical RMS jitter of 4pS RMS ( at 155MHz ). PLL602-35, PLL602-37, PLL602-38, and PLL602-39 accept fundamental parallel resonant mode crystals from 12 to 25MHz.
