PLL601-03

Features: · Full swing CMOS outputs with 25 mA drive capability at TTL levels.· Reference 10-30MHz crystal or clock.· Integrated crystal load capacitor: no external load capacitor required.· Output clocks up to 198MHz at 3.3V.· Low phase noise (-126dBc/Hz @ 1kHz).· Output Enable function.· Low jit...

product image

PLL601-03 Picture
See larger image
SeekIC No. : 004463362 Detail

PLL601-03: Features: · Full swing CMOS outputs with 25 mA drive capability at TTL levels.· Reference 10-30MHz crystal or clock.· Integrated crystal load capacitor: no external load capacitor required.· Output ...

PLL601-03 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PLL601-03
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Full swing CMOS outputs with 25 mA drive capability at TTL levels.
·  Reference 10-30MHz crystal or clock.
·  Integrated crystal load capacitor: no external load capacitor required.
·  Output clocks up to 198MHz at 3.3V.
·  Low phase noise (-126dBc/Hz @ 1kHz).
·  Output Enable function.
·  Low jitter (RMS): 6.4ps (period), 9.4ps (accum.)
·  Advanced low power sub-micron CMOS process.
·  3.3V operation.
·  Available in 16-Pin SOIC or TSSOP.


Pinout

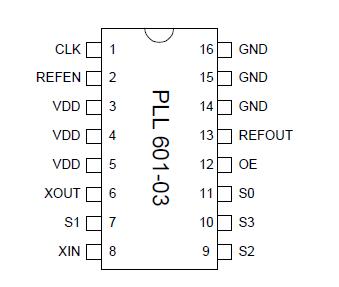

Connection Diagram


Specifications

PARAMETERS

 SYMBOL MIN. MAX. UNITS
Supply Voltage Range VCC -0.5 7 V
Input Voltage Range VI -0.5 VCC+0.5 V
Output Voltage Range VO -0.5 VCC+0.5 V
Soldering Temperature     260 °C
Storage Temperature TS -65 150 °C
Ambient Operating Temperature   0 70 °C
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above the operational limits noted in this specification is not implied.


Description

The PLL601-03 is a low cost, high performance and low phase noise clock synthesizer. It implements PhaseLink's proprietary analog and digital Phase Locked Loop techniques to allow the user to select the desired multiplier value. The PLL601-03 accepts crystal or clock inputs ranging from 10 to 30MHz, depening on selected multiplier, and produces outputs clocks up to 198MHz at 3.3V.
