Features:

• High-frequency operation: 1500 MHz to 3500 MHz
• Fixed divide ratio of 8
• Low-power operation: 12 mA typical @ 3 V across frequency
• Small package: 8-lead MSOP



Pinout

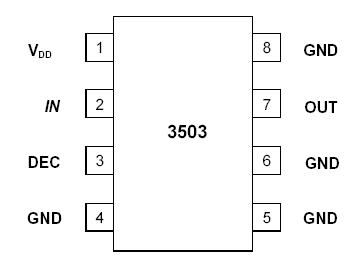

  Connection Diagram


Specifications

Symbol Parameter/Conditions Min Max Units
VDD Power supply voltage   4.0 V
TST Storage temperature range -65 150 °C
TOP Operating temperature
range
-40 85 °C
VESD ESD voltage (Human Body
Model)
250   V
PINMAX Maximum input power   10 dBm

Absolute Maximum Ratings are those values listed in the above table. Exceeding these values may cause permanent device damage. Exposure to absolute maximum ratings for extended periods may affect device reliability.




Description

The PE3503 is a high performance monolithic UltraCMOS™ prescaler with a fixed divide ratio of 8. Its operating frequency range is 1500 MHz to 3500 MHz. The PE3503 operates on a nominal 3 V supply and draws only 12 mA. It is packaged in a small 8-lead MSOP and is ideal for microwave PLL synthesis solutions.

The PE3503 is manufactured in Peregrine's patented Ultra Thin Silicon (UTSi©) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
