Product Details

Description



Features:

• High-frequency operation: 1500 MHz
  to 3500 MHz
• Fixed divide ratio of 4
• Low-power operation: 12 mA typical
  @ 3 V across frequency
• Small package: 8-lead MSOP

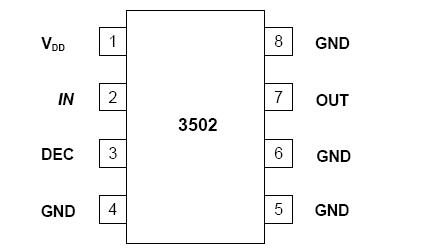

Pinout

Connection Diagram


Specifications

Symbol Parameter/Conditions Min Max Units
VDD Supply voltage   4.0 V
TST Storage temperature range -65 150 °C
TOP Operating temperature range -40 85 °C
VESD ESD voltage (Human Body Model) 250   V
PINMAX Maximum input power   10 dBm



Description

The PE3502 is a high performance monolithic UltraCMOS™ prescaler with a fixed divide ratio of 4. Its operating frequency range is 1500 MHz to 3500 MHz. The PE3502 operates on a nominal 3 V supply and draws only 12 mA. It is packaged in a small 8-lead MSOP and is ideal for microwave PLL synthesis solutions.

The PE3502 is manufactured in Peregrine's patented Ultra Thin Silicon (UTSi©) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
