Product Details

Description



Features:

• High-frequency operation:
400 MHz to 3500 MHz
• Fixed divide ratio of 2
• Low-power operation: 12 mA typical @ 3 V
• Small package: 8-lead TSSOP
• Low cost

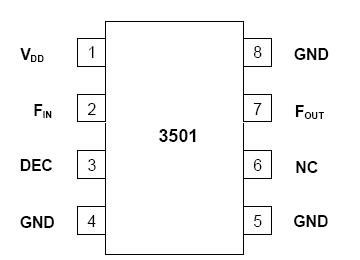

Pinout

Connection Diagram




Specifications

Symbol Parameter/Conditions Min Max Units
VDD Supply voltage 4.0 V
PIN Input Power 15 dBm
TST Storage temperature range -65 150 °C
TOP Operating temperature
range		 -40 85 °C
VESD ESD voltage (Human Body
Model)		 250 V





Description

The PE3501 is a high-performance dynamic UltraCMOS™ prescaler with a fixed divide ratio of 2. Its operating frequency range is 400 MHz to 3.5 GHz. The PE3501 operates on a nominal 3 V supply and draws only 12 mA. It is packaged in a small 8-lead TSSOP and is ideal for frequency scaling and microwave PLL synthesis solutions.

The PE3501 is manufactured on Peregrine's UltraCMOS™ process, a patented variation of silicon-on-insulator (SOI) technology on a sapphire substrate, PE3501 offering the performance of GaAs with the economy and integration of conventional CMOS.
