PCK2023

Features: • 3.3 V operation• Three differential CPU clock pairs• Ten PCI clocks at 3.3 V• Six 66 MHz clocks at 3.3 V• Two 48 MHz clocks at 3.3 V• One 14.318 MHz reference clock• 66,100, 133 or 200 MHz operation• Power management control pins• C...

product image

PCK2023 Picture
See larger image
SeekIC No. : 004456654 Detail

PCK2023: Features: • 3.3 V operation• Three differential CPU clock pairs• Ten PCI clocks at 3.3 V• Six 66 MHz clocks at 3.3 V• Two 48 MHz clocks at 3.3 V• One 14.318 MHz r...

PCK2023 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCK2023
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.3 V operation
• Three differential CPU clock pairs
• Ten PCI clocks at 3.3 V
• Six 66 MHz clocks at 3.3 V
• Two 48 MHz clocks at 3.3 V
• One 14.318 MHz reference clock
• 66,100, 133 or 200 MHz operation
• Power management control pins
• CPU clock skew less than 200 ps cycle-to-cycle
• CPU clock skew less than 150 ps pin-to-pin
• 1.5 ns to 3.5 ns delay on PCI pins
• Spread Spectrum capability


Pinout

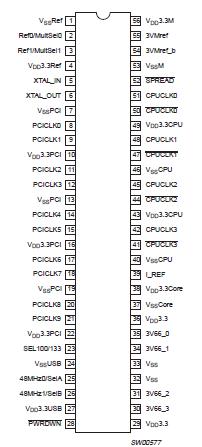

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITION
LIMITS
UNIT
MIN
MAX
VDD3
 DC 3.3 V supply
0.5
+4.6
V
IIK
 DC input diode current
VI < 0
-50
mA
VI
 DC input voltage
Note 2
V
IOK
 DC output diode current
VO > VDD or VO < 0
±50
mA
VO
 DC output voltage
Note 2
-0.5
VDD + 0.5
V
IO
 DC output source or sink current
VO >= 0 to VDD
-
±50
mA
TSTG
 Storage temperature range
65
+150
°C
Ptot
 Power dissipation per package
plastic medium-shrink SO (SSOP)
For temperature range: 0 to +70°Cabove +55°C derate linearly with 11.3mW/K
-
850
mW

NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.




Description

The PCK2023 is a clock synthesizer/driver for a Pentium IV and ther similar processors.

The PCK2023 has three differential pair CPU current source utputs. There are ten PCI clock outputs running at 33 MHz and two 8 MHz clocks. There are six 3V66 outputs. Finally, there is one .3 V reference clock at 14.318 MHz. All clock outputs meet Intel's rive strength, rise/fall times, jitter, accuracy, and skew equirements.

The part possesses a dedicated power-down input pin for power anagement control. This input of PCK2023  is synchronized on-chip and nsures glitch-free output transitions.
