Features: • 3.3 V operation• Six differential CPU clock pairs• Two PCI clocks at 33 MHz and one 3V66 clock• Two 48 MHz clocks at 3.3 V• One 14.318 MHz reference clock• Power management control pins• Host clock jitter less than 200 ps cycle-to-cycle• ...
PCK2021: Features: • 3.3 V operation• Six differential CPU clock pairs• Two PCI clocks at 33 MHz and one 3V66 clock• Two 48 MHz clocks at 3.3 V• One 14.318 MHz reference clock...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
SYMBOL |
PARAMETER |
CONDITION |
LIMITS
|
UNIT
| |
MIN |
MAX | ||||
VDD3 |
DC 3.3 V supply |
0.5 |
+4.6 |
V | |
IIK |
DC input diode current |
VI < 0 |
-50 |
mA | |
VI |
DC input voltage |
Note 2 |
0.5 |
VDD |
V |
IOK |
DC output diode current |
VO > VDD or VO < 0 |
±50 |
mA | |
VO |
DC output voltage |
Note 2 |
-0.5 |
VDD + 0.5 |
V |
IO |
DC output source or sink current |
VO >= 0 to VDD |
- |
±50 |
mA |
TSTG |
Storage temperature range |
65 |
+150 |
°C | |
Ptot |
Power dissipation per package plastic medium-shrink SO (SSOP) |
For temperature range: 0 to +70°Cabove +55°C derate linearly with 11.3mW/K |
- |
850 |
mW |
NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

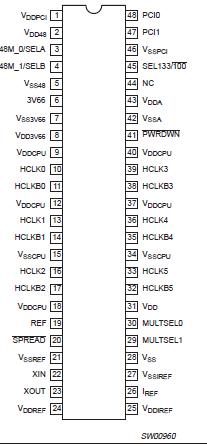

The PCK2021 is a clock synthesizer/driver for a Pentium IIIE and other similar processors.
The PCK2021 has six differential pair CPU current source outputs, two 33 MHz outputs, one 3V66 output, and two 48 MHz clocks which can be disabled on power-up, and one 3.3 V reference clock at 14.318 MHz which can also be disabled on power-up.
The part possesses a dedicated power-down input pin for power management control. This input of PCK2021 is synchronized on chip, and ensures glitch-free output transitions. In addition, the part can be configured to disable the 48 MHz outputs for lower power operation and an increase in the performance of the functioning outputs. The REF and PCI outputs of PCK2021 can also be disabled for the highest performance of the Host outputs.
