PCF8573

Features:

· Serial input/output I2C-bus interface for minutes, hours, days and months
· Additional pulse outputs for seconds and minutes
· Alarm register for presetting a time for alarm or remote switching functions
· On-chip power fail detector
· Separate ground pin for the clock allows easy implementation of battery back-up during supply interruption
· Crystal oscillator control (32.768 kHz)
· Low power consumption.

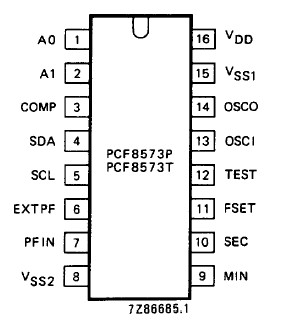

Pinout




Specifications

SYMBOL	PARAMETER	MIN.	MAX.	UNIT
VDD - VSS1	supply voltage (pin 16 to pin 15)	-0.3	+8.0	V
VDD - VSS2	supply voltage (pin 16 to pin 8)	-0.3	+8.0	V
Vl	input voltage pins 4 and 5 (with input impedance of minimum 500 ) pins 6, 7, 13 and 14 any other pin
		VSS2 - 0.8	VDD + 0.8	V
		VSS1 - 0.6	VDD + 0.6	V
		VSS2 - 0.6	VDD + 0.6	V
Il	DC input current	-	10	mA
IO	DC output current	-	10	mA
Ptot	total power dissipation per package	-	200	mW
PO	power dissipation per output	-	100	mW
Tamb	operating ambient temperature	-40	+85
Tstg	storage temperature	-55	+125

Description

The PCF8573 is a low threshold, CMOS circuit that functions as a real time clock/calendar. Addresses and data are transferred serially via the two-line bidirectional I2C-bus.

The IC incorporates an addressable time counter PCF8573 and an addressable alarm register for minutes, hours, days and months. Three special control/status flags, COMP, POWF and NODA, are also available. Back-up for the clock during supply interruptions of PCF8573 is provided by a 1.2 V nickel cadmium battery. The time base is generated from a 32.768 kHz crystal-controlled oscillator.
