PCF84C12A

Features: ` Manufactured in silicon gate CMOS process` 8-bit CPU, ROM, RAM, I/O in a 20-lead package` 1 kbyte ROM (PCF84C12A)` 2 kbyte ROM (PCF84C22A)` 4 kbyte ROM (PCF84C42A)` 64 byte RAM` Over 100 instructions (based on MAB8048) all of1 or 2 cycles` 13 quasi-bidirectional I/O port lines` 8-bit p...

product image

PCF84C12A Picture
See larger image
SeekIC No. : 004456428 Detail

PCF84C12A: Features: ` Manufactured in silicon gate CMOS process` 8-bit CPU, ROM, RAM, I/O in a 20-lead package` 1 kbyte ROM (PCF84C12A)` 2 kbyte ROM (PCF84C22A)` 4 kbyte ROM (PCF84C42A)` 64 byte RAM` Over 100...

PCF84C12A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCF84C12A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Manufactured in silicon gate CMOS process
` 8-bit CPU, ROM, RAM, I/O in a 20-lead package
` 1 kbyte ROM (PCF84C12A)
` 2 kbyte ROM (PCF84C22A)
` 4 kbyte ROM (PCF84C42A)
` 64 byte RAM
` Over 100 instructions (based on MAB8048) all of
1 or 2 cycles
` 13 quasi-bidirectional I/O port lines
` 8-bit programmable timer/event counter 1
` Two single-level vectored interrupts:
external
8-bit programmable timer/event counter 1
` Two test inputs, one of which also serves as the external interrupt input
` Stop and Idle modes
` Supply voltage: 2.5 to 5.5 V
` Clock frequency: 1 to 16 MHz
` Operating temperature: -40 to +85 °C.


Pinout

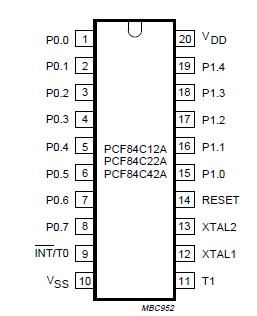

Connection Diagram


Description

This data sheet details the specific properties of the PCF84C12A, PCF84C22A and PCF84C42A. The shared properties of the PCF84CxxxA family of microcontrollers are described in the "PCF84CxxxA family" data sheet, which should be read in conjunction with this publication. Note that the devices described in PCF84C12A sheet do not feature I2C-bus compatibility or derivative logic, so the information given in the family data sheet about these features can be ignored.

The PCF84C12A, PCF84C22A and PCF84C42A are general purpose CMOS microcontrollers with 1 kbyte, 2 kbytes and 4 kbytes of program memory, respectively. They include 64 bytes of RAM and 13 I/O port lines. The instruction set is based on the MAB8048 and is a sub-set of that listed in the "PCF84CxxxA family" data sheet.
