PCF84C00

Features: ` Manufactured in silicon gate CMOS process` 8-bit CPU, RAM, I/O in a single 28-lead or 56-lead package` 'Piggy-back' and ROM-less versions, external program memory` 256 ´ 8 RAM` 20 quasi-bidirectional I/O port lines` Two test inputs, one of which is also the external interrupt inp...

product image

PCF84C00 Picture
See larger image
SeekIC No. : 004456427 Detail

PCF84C00: Features: ` Manufactured in silicon gate CMOS process` 8-bit CPU, RAM, I/O in a single 28-lead or 56-lead package` 'Piggy-back' and ROM-less versions, external program memory` 256 ´ 8 RAM` 20 ...

PCF84C00 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCF84C00
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Manufactured in silicon gate CMOS process
` 8-bit CPU, RAM, I/O in a single 28-lead or 56-lead package
` 'Piggy-back' and ROM-less versions, external program memory
` 256 ´ 8 RAM
` 20 quasi-bidirectional I/O port lines
` Two test inputs, one of which is also the external interrupt input
` Three single-level vectored interrupts:
external
timer/event counter
I2C-bus
` I2C-bus interface for serial data transfer on two lines (serial I/O data via an existing port line and clock via a dedicated line)
` 8-bit programmable timer/event counter
` Clock frequency range: 100 kHz to 10 MHz
` Over 80 instructions (similar to those of the MAB8048) all of 1 or 2 cycles
` Single supply voltage (2.5 to 5.5 V)
` Stop and Idle modes
` Power-on reset circuit
` Operating temperature range: -40 to +85 °C.


Pinout

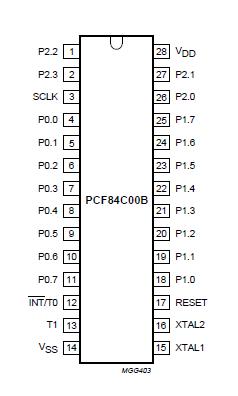

Connection Diagram


Description

This data sheet details the specific properties of the PCF84C00. The shared properties of the PCF84CxxxA family of microcontrollers are described in the "PCF84CxxxA family" data sheet, which should be read in conjunction with this publication. The PCF84C00 has 20 quasi-bidirectional I/O lines, an I2C-bus serial interface, a single-level vectored interrupt structure, an 8-bit timer/event counter and on-chip clock oscillator and clock circuits.

This efficient controller of PCF84C00 also performs well as an arithmetic processor. PCF84C00 has facilities for both binary and BCD arithmetic plus bit-handling capabilities. The instruction set is similar to the MAB8048 and is a sub-set of that listed in the "PCF84CxxxA family" data sheet.
