PCF84C21A

Features: ` Manufactured in silicon gate CMOS process` 8-bit CPU, ROM, RAM, I/O in a 28-lead package` 2 kbyte ROM, 64 byte RAM (PCF84C21A)` 4 kbyte ROM, 128 byte RAM (PCF84C41A)` 8 kbyte ROM, 256 byte RAM (PCF84C81A)` I2C-bus interface with multi-master capability` Over 100 instructions (based on ...

product image

PCF84C21A Picture
See larger image
SeekIC No. : 004456430 Detail

PCF84C21A: Features: ` Manufactured in silicon gate CMOS process` 8-bit CPU, ROM, RAM, I/O in a 28-lead package` 2 kbyte ROM, 64 byte RAM (PCF84C21A)` 4 kbyte ROM, 128 byte RAM (PCF84C41A)` 8 kbyte ROM, 256 by...

PCF84C21A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCF84C21A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Manufactured in silicon gate CMOS process
` 8-bit CPU, ROM, RAM, I/O in a 28-lead package
` 2 kbyte ROM, 64 byte RAM (PCF84C21A)
` 4 kbyte ROM, 128 byte RAM (PCF84C41A)
` 8 kbyte ROM, 256 byte RAM (PCF84C81A)
` I2C-bus interface with multi-master capability
` Over 100 instructions (based on MAB8048) all of 1 or 2 cycles
` 20 quasi-bidirectional I/O Port lines
` High sink current capability on the 8 lines of Port 1
` 8-bit programmable timer/event counter 1
` 3 single-level vectored interrupts:
external
8-bit programmable timer/event counter 1
I2C-bus
` Two test inputs, one of which also serves as the external interrupt input
` Stop and Idle modes
` Supply voltage: 2.5 to 5.5 V
` Clock frequency: 1 to 16 MHz
` Operating temperature: -40 to +85 °C.


Pinout

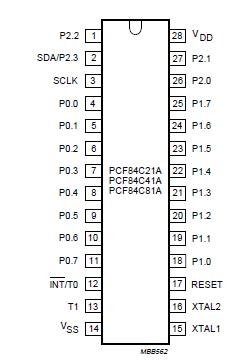

Connection Diagram


Description

This data sheet details the specific properties of the PCF84C21A, PCF84C41A and PCF84C81A. The shared properties of the PCF84CxxxA family of microcontrollers are described in the "PCF84CxxxA family" data sheet which should be read in conjunction with this publication.

The PCF84C21A, PCF84C41A and PCF84C81A are general purpose CMOS microcontrollers with 2 kbytes, 4 kbytes and 8 kbytes of program memory and 64,128 and 256 bytes of RAM, respectively. In addition to 20 I/O port lines, the microcontrollers PCF84C21A provide an on-chip I2C-bus interface. This two-line serial bus extends the microcontroller capabilities when implemented with the powerful I2C-bus peripherals. These include LCD drivers, I/O expanders, telecom circuits, ADC and DAC converters, clock/calendar circuits, EEPROM and RAM and are listed in "Data Handbook IC12, I2C Peripherals".

The instruction set is based on that of the MAB8048 and is a sub-set of that listed in the "PCF84CxxxA family" data sheet.
