Features:

· Two throughput options:
  P1757M 2.5MIPS USAF Dais Mix (Inc.Flt.Pt.)@40 MHz
  P1757ME 3.6MIPS USAF Dais Mix (Inc.Flt.Pt.)@40 MHz
· All MIL-STD-1750A data formats and address
  types implemented.
· P1757ME includes additional matrix and vector
  instructions to enhance throughput in
  navigation, DSP transcendental and other
  complex alorithms.
· Error detection and correction and parity bit provided.
· Separate high drive external address & data busses.
  10MHz data rate at 40MHz CPU clock
· System support functions included:
· Arbitrator for use in tightly coupled
· multiprocessor design. Bus control provided
  to aid in implementation of multi-processor systems.
· MIL-STD-1750A timers A & B, programmable
  watch dog timer and programmable bus timeout function.
· Start up ROM support per MIL-STD-1750A.
· DMA support for logical and physical memory addresses.
· Programmable memory and I/O data wait
  state generation permits up to four different
  memory speeds in the same system.
· Programmable address wait states.
· Sixteen levels of interrupts are provided per
· MIL-STD-1750A. Interrupts can be either
  edge- or level-sensitive.
· Fault detection and handling
  Programmable detection of unimplemented
  memory or illegal I/O addresses.
· Full implementation of MIL-STD-1750A fault register.
· External address error detection.
· Testability and diagnostics.
· First falling address and data registers.
· Built in test - runs automatically at power on
  and after each reset. All hardware blocks
  and external busses examined. Hardware
  pass/fail for catastrophic failures. Status
  register indicates failed test.
· Console operating mode which allows
  operator to examine and change contents of
  registers within the CPU, any system
  memory location, or the I/O subsystems.
· Single 144-pin Quad straight lead or Gullwing
  1.5 square inches of board surface.
· Operating temperature range -55 to +125°C;
  single 5V ± 10% VCC power supply; power
  dissipation < 1.9W (worst case at 40 MHz).


Pinout

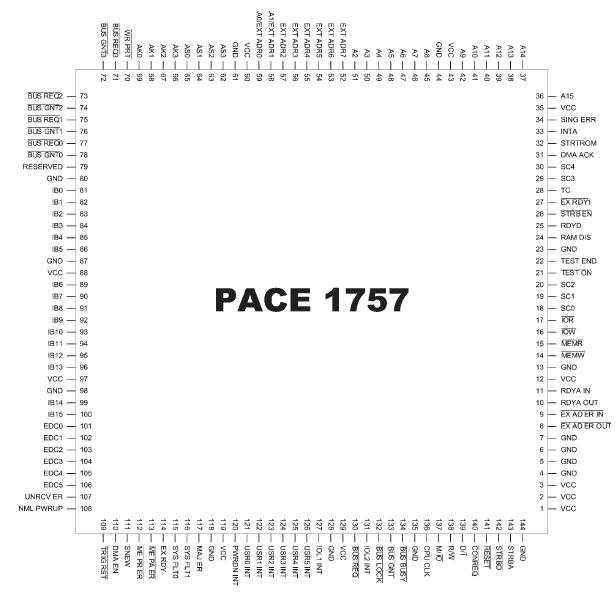

Connection Diagram


Specifications

Storage Temperature -65°C to +150°C
Ambient Temperature with Power -55°C to +125°C
VCC Pin Potential to Ground Pin -0.5V to 7.0V
Input Voltage -0.5V to VCC + 0.5V
Input Current -30 mA to 5 mA
Voltage Applied to Inputs -0.5V to VCC + 0.5V
Current Applied to any Output 100 mA
Power Dissipation 2.5 Watts
JA 35°C/W



Description

All functions of PACE1757M required for a complete MIL-STD-1750A embedded CPU subsystem are in this single VLSI microcircuit occupying 1.5 square inches of board space with less than 1.9 watts of power dissipation at 40 MHz. Pyramid's P1757M/ME PACE1757M is a complete, single package, 3.6 MIPS subsystem solution to embedded processor requirements.

The PACE 1757M uses the application-proven PACE 1750A microprocessor, the PACE 1753, and the PACE 1754. The PACE1757ME uses the enhanced PACE 1750AE microprocessor, which has additional instructions that provide high throughput for transcendental functions, navigational algorithms, and DSP functions. The PACE 1750AE PACE1757M is an architectural enhancement of the PACE 1750A.
