NTE7082

Features: High Noise Immunity InputsClockwise and CounterClockwise OperationReset FacilityHigh Output CurrentOutputs Protected Against Damage by OvershootApplicationAutomotive IndustryIndustrialOffice EquipmentEDPPinoutSpecificationsDC Supply Voltage, VCC1, VCC2 . . . . . . . . . . . . . . . . . ....

product image

NTE7082 Picture
See larger image
SeekIC No. : 004436478 Detail

NTE7082: Features: High Noise Immunity InputsClockwise and CounterClockwise OperationReset FacilityHigh Output CurrentOutputs Protected Against Damage by OvershootApplicationAutomotive IndustryIndustrialOffi...

NTE7082 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE7082
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 High Noise Immunity Inputs
 Clockwise and CounterClockwise Operation
 Reset Facility
 High Output Current
 Outputs Protected Against Damage by Overshoot


Application

 Automotive Industry
 Industrial
 Office Equipment
 EDP


Pinout

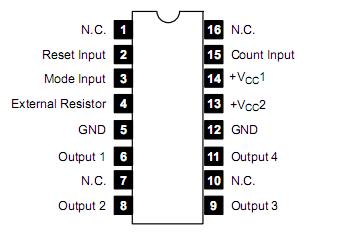

Connection Diagram


Specifications

DC Supply Voltage, VCC1, VCC2  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Input Voltage (All Inputs), VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18V
Current into Pin4, IRX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120mA
Output Current, IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mA
Operating Ambient Temperature Range, TA . . . . . . . . . . . . . . . . . . . 20° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150°C


Description

The NTE7082 is a bipolar integrated circuit in a 16Lead DIP type package intended for driving a fourphase twostate motor.  The circuit consists of a bidirectional fourstate counter and a code converter to drive the four outputs in the sequence required for driving a stepping motor.
